Daim kab xev-Wrapped Hlau

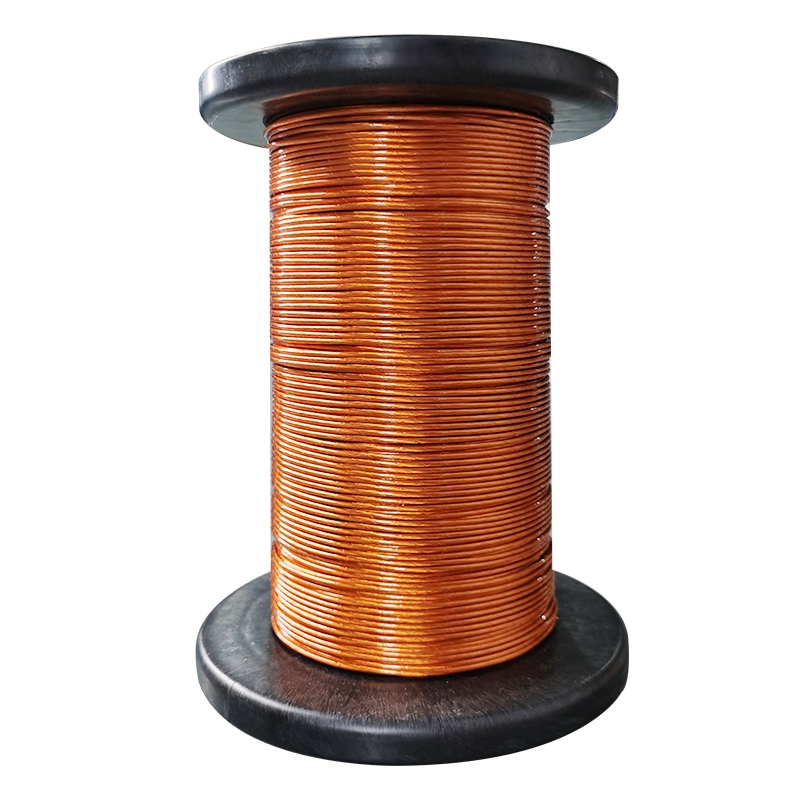

Huaying Daim kab xev-Wrapped Hlau yog muab los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Huaying Electronic Technology Co., Ltd. Tau ntau xyoo, lawv tsis tau tsuas yog ua raws li cov qauv thoob ntiaj teb xws li UL thiab VDE hauv lawv tus kheej kev lag luam, tab sis kuj tau koom tes nrog lub koom haum tshawb fawb Shenzhen ntawm Huazhong University of Science thiab Technology, koom tes tsim ntau yam kev patents. Qhov no qhia txog lawv txoj kev cog lus rau cov khoom siv technology. Qhov no tau txais lawv lub koob npe nrov thiab kev ntseeg siab ntawm ntau tus neeg siv khoom.
Khoom Compressive zog
Rwb thaiv tsev yog lub hauv paus ntawm cov ntaub ntawv insulated, thiab Huaying Tape-Wrapped Wire tau dhau los ua qhov kev sim siab-voltage. Lawv siv cov voltages tshaj cov uas feem ntau siv nyob rau hauv niaj hnub siv los saib xyuas rau to. Cov txiaj ntsig pom tau tias txawm tias nyob rau hauv high-voltage tej yam kev mob, cov hlau tuav zoo heev rwb thaiv tsev kev ua tau zoo thiab tsis muaj to, ib tug tseem ceeb kev nyab xeeb feature rau kev kho mob cov cuab yeej thiab high-frequency, high-voltage fais fab hloov khoom siv.
Product Inspection Specifications
Txhawm rau kom ntseeg tau tias txhua qhov yob ntawm Huaying Daim kab xev-Wrapped Hlau ua tau raws li cov qauv, peb tuav cov txheej txheem tshuaj xyuas nruj heev. Piv txwv li, qhov zoo li yog ua tib zoo tshuaj xyuas rau khawb thiab stains, nto smoothness, glossiness, thiab xim uniformity, nrog rau tej sticking. Cov xim yog cov neeg siv khoom tau teev tseg, thiab txawm tias lub spool raug tshuaj xyuas kom muaj kev ncaj ncees. Txhua qhov kev nthuav dav tau soj ntsuam nruj me ntsis kom ntseeg tau tias tsis muaj cov khoom puas tuaj yeem ncav cuag cov neeg siv khoom.
Kev Pabcuam Tomqab Muag
Huaying Daim kab xev-Wrapped Hlau muaj tshwj xeeb kev pab cuam tom qab muag. Lub tuam txhab muab kev lees paub zoo ntawm cov khoom siv thiab kev ua haujlwm. Yog tias muaj teeb meem zoo tshwm sim thaum siv, tsuas yog qhia lawv mus rau pab pawg tom qab muag, leej twg yuav teb tam sim ntawd, txheeb xyuas qhov teeb meem, thiab daws nws yam tsis muaj kev ncua lossis kev khiav tawm. Txawm tias tom qab lub sijhawm lav, yog tias cov neeg siv khoom ntsib teeb meem, lawv tuaj yeem tiv tauj lawv thiab lawv yuav ua qhov zoo tshaj plaws los muab kev pabcuam, ua kom muaj kev thaj yeeb nyab xeeb.
| Tus neeg xyuas pib (mm) | zuag qhia tag nrho txoj kab uas hla (mm) | daim kab xev dav (mm) | Sib tshooj tus nqi | Ntim ntev (M / axis) | Tus coj tsis kam (20 ℃) (Ω/km) | Ntaus tooj liab bar rau tiv taus hluav taws xob AC/KV | |||
| Tus coj txoj kab uas hla | Tso cai kam rau ua | yam tsawg kawg nkaus tus nqi | phiaj tus nqi | Qhov siab tshaj plaws | |||||
| 0.10 × 30 | ± 0.008 | 0.704 | 0.804 | 0.904 | 6 ± 0.2 | ≥110% | 2000 | ≤86.7 | 4 |
| 0.10 × 40 | ± 0.008 | 0.807 | 0.907 | 1.007 | 6 ± 0.2 | ≥110% | 1000 | ≤65 | 4 |
| 0.10 × 50 | ± 0.008 | 0.898 | 0.998 | 1.098 | 7 ± 0.2 | ≥110% | 1000 | ≤ 52.0 | 4 |
| 0.10 × 60 | ± 0.008 | 0.98 | 1.08 | 1.18 | 7 ± 0.2 | ≥110% | 1000 | ≤ 43.3 | 4 |
| 0.10 × 70 hli | ± 0.008 | 1.055 | 1.155 | 1.255 | 8 ± 0.2 | ≥110% | 1000 | ≤37.1 | 4 |
| 0.10 × 80 hli | ± 0.008 | 1.13 | 1.23 | 1.33 | 8 ± 0.2 | ≥110% | 1000 | ≤32.5 | 4 |
| 0.10 × 90 hli | ± 0.008 | 1.19 | 1.29 | 1.39 | 8 ± 0.2 | ≥110% | 800 | ≤ 28.9 | 4 |
| 0.10 X 100 hli | ± 0.008 | 1.253 | 1.353 | 1.453 | 8 ± 0.2 | ≥110% | 800 | ≤ 26.0 | 4 |
| 0.10 X 110 hli | ± 0.008 | 1.312 | 1.412 | 1.512 | 8 ± 0.2 | ≥110% | 800 | ≤ 23.638 | 4 |
| 0.10 X 120 hli | ± 0.008 | 1.369 | 1.469 | 1.569 | 8 ± 0.2 | ≥110% | 800 | ≤ 21.668 | 4 |
| 0.10 X 130 hli | ± 0.008 | 1.423 | 1.523 | 1.623 | 9 ± 0.2 hli | ≥110% | 800 | ≤ 20 | 4 |
| 0.10 X 140 hli | ± 0.008 | 1.475 | 1.575 | 1.675 | 9 ± 0.2 hli | ≥110% | 800 | ≤18.573 | 4 |
| 0.10 X 150 hli | ± 0.008 | 1.525 | 1.625 | 1.725 | 9 ± 0.2 hli | ≥110% | 800 | ≤17.335 | 4 |
