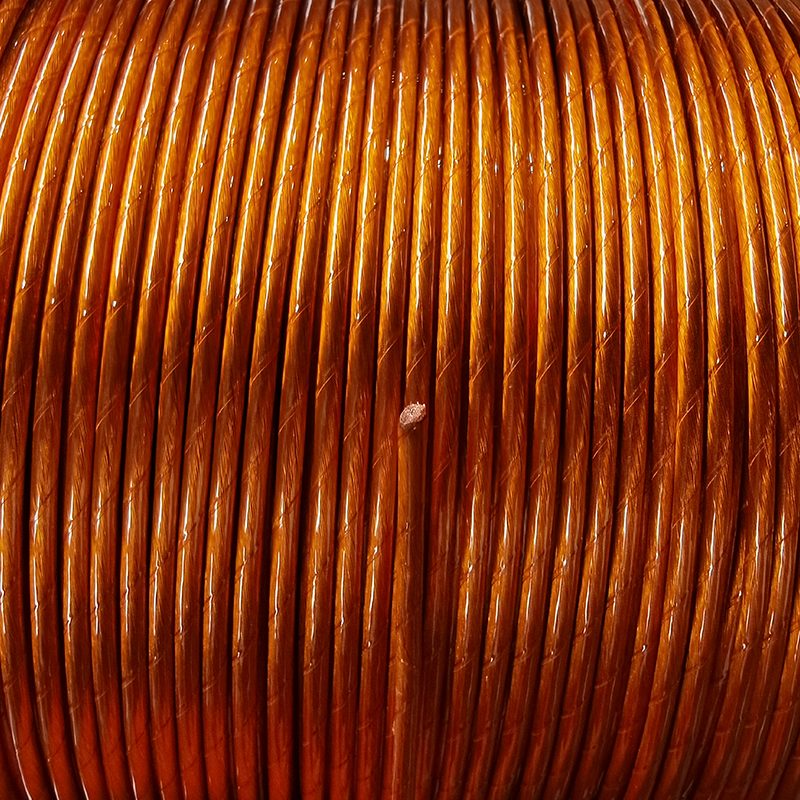

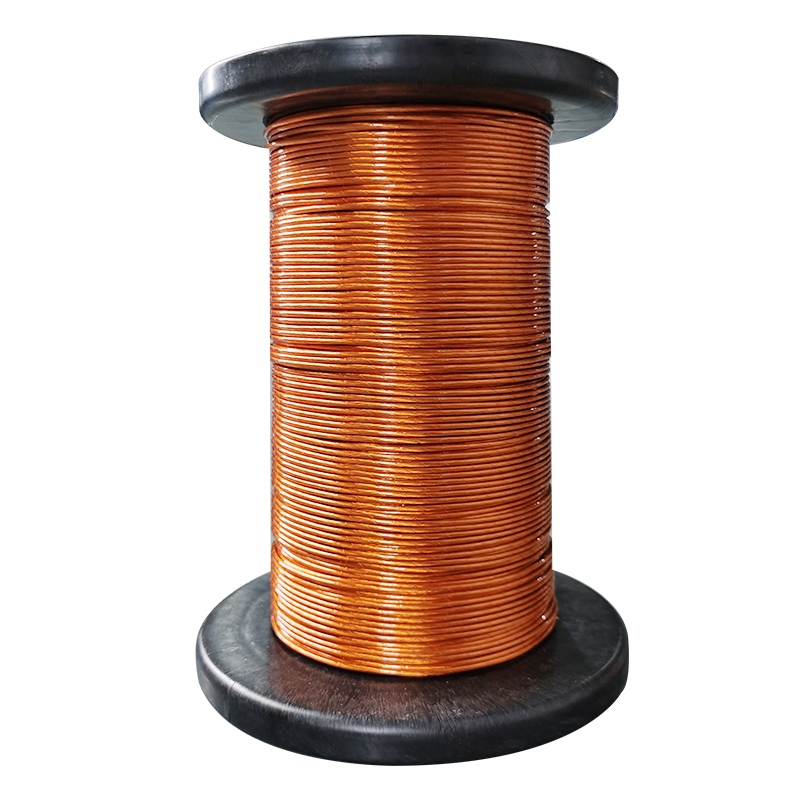

Mylar-Film-Folded Hlau
Huaying Mylar-Film-Folded Hlau yog tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Huaying tsis yog lub tuam txhab zoo tib yam. Peb khav theeb muaj zog thiab muaj kev tshaj lij R & D pab pawg, cov tub ntxhais tsav tsheb tom qab cov khoom tsim kho tshiab thiab zoo. Lawv mus txog kev cov nyom ntawm ntau qhov kev xav, infusing ntau yam kev txawj ntse rau hauv kev tsim khoom. Tam sim no peb muaj cov neeg siv khoom loj thiab ruaj khov thiab tau txais ntau qhov kev tshuaj xyuas zoo. Xaiv peb txhais tau tias xaiv tus khub zoo. Koj tos dab tsi?
Cov ntaub ntawv khoom
Cia peb pib delve rau hauv qhov tseeb yog Huaying Mylar-Film-Folded Wire? Nws yog ib tug tsiaj nyaum sib txawv kiag li los ntawm cov kab hluav taws xob zoo tib yam ntawm lub khw. Nws yog qib sib txawv kiag li. Ib tus neeg xyuas pib nyias tau ua tib zoo coated nrog ib zaj duab xis hluavtaws ntawm qhov sib tshooj tshwj xeeb, zoo ib yam li qhwv cov khoom plig rau ntawm khoom plig. Qee zaum, lwm cov ntaub ntawv kev cai kuj tau siv, uas ua rau cov hlau nplaum hlau los yog enameled stranded hlau. Tsis txhob underestimate no nyias zaj duab xis; nws ua zoo li tus tailor-made "protective armor" rau fragile conductors. Nws tsis tsuas yog haum seamlessly tab sis kuj zoo tiv thaiv txhua yam uas yuav cuam tshuam rau hluav taws xob kev nyab xeeb, ua kom ruaj khov kis tau tus mob yam tsis muaj kev pheej hmoo ntawm to. Precisely vim nws qhov tshwj xeeb thiab txhim khu kev qha rwb thaiv tsev, nws tau dhau los ua cov khoom kub hauv kev lag luam hlau electromagnetic, nyiam rau ntau cov khoom siv precision-xws li high-frequency transformers hauv cov cuab yeej kho mob thiab cov khoom tseem ceeb hauv cov khoom siv xov tooj ntawm tes. Thaum twg yuav tsum muaj kev nyab xeeb thiab ruaj khov hluav taws xob, nws yog thawj qhov uas xav txog.
Khoom Rwb thaiv tsev Performance
Kev rwb thaiv tsev ntawm Huaying Mylar-Film-Folded Wire yog qhov zoo nkauj tiag tiag. Ua ntej, cia peb saib cov specifications nyuaj. Nws cov rwb thaiv tsev coefficient yog siab dua li ntawm cov txheej txheem insulated nyob ntawm kev ua lag luam. Cov ntaub ntawv ntsuas siv cov cuab yeej tshaj lij thiab piv rau cov khoom zoo sib xws tam sim ntawd qhia tau tias nws zoo dua. Tsis yog tag nrho. Nws qhov kev xav zoo tshaj plaws nyob rau hauv nws cov practicality nyob rau hauv tiag tiag tsim tsim. Siv nws los sib sau cov cuab yeej tshem tawm qhov xav tau ntawm ob qho tib si thawj thiab theem nrab tuav cov phab ntsa. Qhov no yog ib qho txiaj ntsig tseem ceeb rau cov tuam txhab lag luam: Ua ntej, tsis tas yuav yuav cov khoom siv rau khaws cov phab ntsa, txuag cov nqi khoom tseem ceeb. Qhov thib ob, cov txheej txheem sib dhos yog streamlined, tshem tawm lub sijhawm thiab kev ua haujlwm uas yuav tsum tau ua los tsim cov phab ntsa tuav. Dab tsi ib zaug ua ob peb kauj ruam tam sim no tuaj yeem ua tiav hauv ib kauj ruam, txo cov neeg ua haujlwm ua haujlwm thiab txhawb kev tsim khoom. Kev tsim kho phab ntsa tsis ua rau kev ua tiav tag nrho.
Cov kab ntau lawm
Peb lub tuam txhab boasts ob peb "zaum champion" ntau lawm kab! Cov khoom siv tseem ceeb siv los tsim Huaying Mylar-Film-Folded Wire yog qib siab, tuaj ntawm lub teb chaws Yelemees thiab Nyiv. Nws yog txawm peem rau nrog ib tug proprietary ntse tswj system uas saib xyuas tsis xws li txoj kab uas hla thiab rwb thaiv tsev thickness nyob rau hauv lub sij hawm ntawm ntau lawm, yuav kho tej deviations.
| Tus neeg xyuas pib (mm) | zuag qhia tag nrho txoj kab uas hla (mm) | daim kab xev dav (mm) | Sib tshooj tus nqi | Ntim ntev (M / axis) | Tus coj tsis kam (20 ℃) (Ω/km) | Ntaus tooj liab bar rau tiv taus hluav taws xob AC/KV | |||
| Tus coj txoj kab uas hla | Tso cai kam rau ua | yam tsawg kawg nkaus tus nqi | phiaj tus nqi | Qhov siab tshaj plaws | |||||
| 0.10 × 30 | ± 0.008 | 0.704 | 0.804 | 0.904 | 6 ± 0.2 | ≥110% | 2000 | ≤86.7 | 4 |
| 0.10 × 40 | ± 0.008 | 0.807 | 0.907 | 1.007 | 6 ± 0.2 | ≥110% | 1000 | ≤65 | 4 |
| 0.10 × 50 | ± 0.008 | 0.898 | 0.998 | 1.098 | 7 ± 0.2 | ≥110% | 1000 | ≤ 52.0 | 4 |
| 0.10 × 60 | ± 0.008 | 0.98 | 1.08 | 1.18 | 7 ± 0.2 | ≥110% | 1000 | ≤ 43.3 | 4 |
| 0.10 × 70 hli | ± 0.008 | 1.055 | 1.155 | 1.255 | 8 ± 0.2 | ≥110% | 1000 | ≤37.1 | 4 |
| 0.10 × 80 hli | ± 0.008 | 1.13 | 1.23 | 1.33 | 8 ± 0.2 | ≥110% | 1000 | ≤32.5 | 4 |
| 0.10 × 90 hli | ± 0.008 | 1.19 | 1.29 | 1.39 | 8 ± 0.2 | ≥110% | 800 | ≤ 28.9 | 4 |
| 0.10 X 100 hli | ± 0.008 | 1.253 | 1.353 | 1.453 | 8 ± 0.2 | ≥110% | 800 | ≤ 26.0 | 4 |
| 0.10 X 110 hli | ± 0.008 | 1.312 | 1.412 | 1.512 | 8 ± 0.2 | ≥110% | 800 | ≤ 23.638 | 4 |
| 0.10 X 120 hli | ± 0.008 | 1.369 | 1.469 | 1.569 | 8 ± 0.2 | ≥110% | 800 | ≤ 21.668 | 4 |
| 0.10 X 130 hli | ± 0.008 | 1.423 | 1.523 | 1.623 | 9 ± 0.2 hli | ≥110% | 800 | ≤ 20 | 4 |
| 0.10 X 140 hli | ± 0.008 | 1.475 | 1.575 | 1.675 | 9 ± 0.2 hli | ≥110% | 800 | ≤18.573 | 4 |
| 0.10 X 150 hli | ± 0.008 | 1.525 | 1.625 | 1.725 | 9 ± 0.2 hli | ≥110% | 800 | ≤17.335 | 4 |
