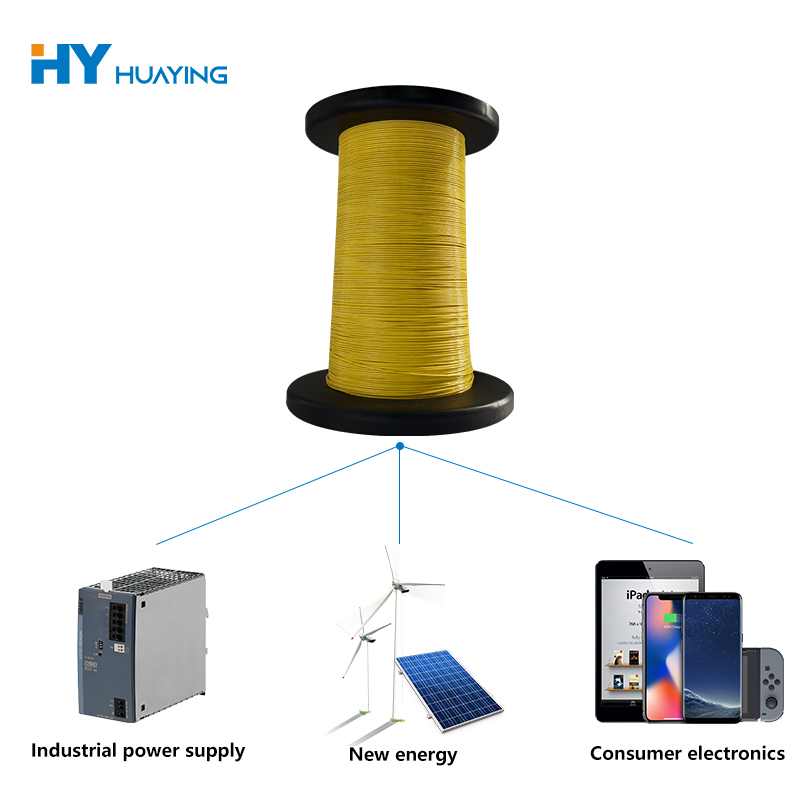

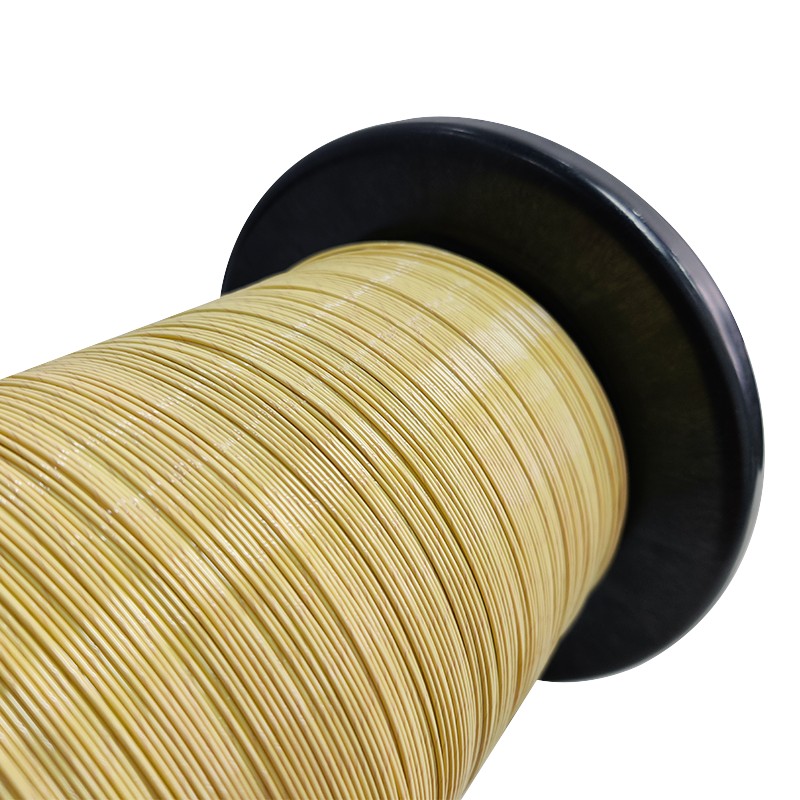

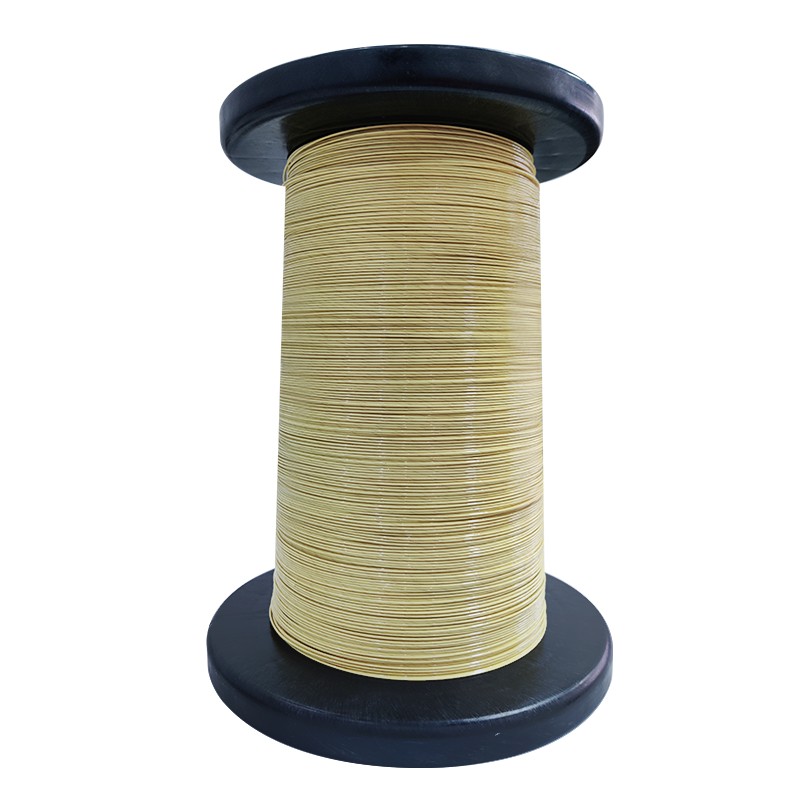

PFA Zaj duab xis Insulated Hlau

Lub Huaying PFA zaj duab xis insulated hlau peb tab tom tham txog yog tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Ntau ntawm peb pab neeg, tshaj 20 nyob rau hauv tag nrho, yog cov qub tub rog nrog ntau xyoo ntawm kev paub nyob rau hauv lub insulated hlau kev lag luam thiab muaj ntau yam kev txawj ntse. Tsis tas li ntawd, peb lub tuam txhab nyiam kev koom tes nrog Shenzhen Research Institute ntawm Huazhong University of Science thiab Technology, ua haujlwm ua ke los daws ntau yam kev sib tw. Lawv tsis siv rau txoj hauv kev haphazard; lawv ib txwm ua raws li kev xav tau ntawm kev lag luam - txawm tias tshawb nrhiav cov ntaub ntawv rwb thaiv tsev tshiab lossis ua kom zoo dua cov qauv hlau rau kev ua tau zoo dua - kom ntseeg tau tias peb cov khoom ua tau zoo dua lwm tus. Yog li, so assured, xaiv peb cov khoom yog qhov tseeb thawj koom ruam!

Xa lus nug

Product Description

Cov khoom muaj zog

Txhawm rau ua kom pom lub zog ntawm Huaying PFA Film Insulated Wire, peb tau ua cov kev ntsuam xyuas tshwj xeeb ntawm kev ntxhov siab. Cias muab tso, cov kev sim no simulate qhov cuam tshuam, compression, thiab rub nws tej zaum yuav muaj nyob rau hauv lub ntiaj teb no siv tiag tiag. Cov txiaj ntsig tau pom tias txawm tias muaj kev ntxhov siab me ntsis, cov neeg siv hluav taws xob hauv cov xov hlau tseem nyob tsis zoo, cov rwb thaiv tsev tsis zoo, thiab lub zog txuas ntxiv mus tas li. Qhov no txhais tau tias nws tuaj yeem ua haujlwm txawm tias ib puag ncig nyuaj, tshem tawm qhov xav tau kev hloov pauv ntau zaus thiab txuag cov hassle tseem ceeb.

Khoom siv

Cov ntaub ntawv rwb thaiv tsev siv nyob rau hauv no Huaying PFA Film Insulated Hlau yog ua tib zoo xaiv thiab zoo tshaj plaws. Cov ntaub ntawv zoo li PET thiab ETFE muab cov rwb thaiv tsev zoo heev thiab tiv thaiv corrosion. PA kuj ntxiv qhov yooj yim rau cov xaim, thaum PI daim kab xev yog qhov zoo heev rau kev ua haujlwm kub. Txhua yam khoom raug tshuaj xyuas kom zoo kom ntseeg tau tias peb tsis txhob siv cov khoom tsis zoo. Nws yog cov ntaub ntawv zoo tshaj plaws uas ua kom Huaying PFA Film Insulated Wire qhov kev ua tau zoo raws li cov qauv kev lag luam.

Product Quality Management

Peb nruj me ntsis tswj qhov zoo ntawm Huaying PFA Film Insulated Hlau los ntawm qhov pib mus txog rau thaum xaus ntawm ntau lawm. Piv txwv li, thaum yuav cov khoom siv raw, txhua pawg yuav tsum tau tshuaj xyuas, thiab cov khoom tsis tsim nyog yuav tsis raug siv. Thaum lub sij hawm tsim khoom, cov neeg ua hauj lwm yuav kuj xyuas cov khoom ntawm lub sij hawm mus rau lub sij hawm mus saib seb lub hlau txoj kab uas hla yog txaus thiab cov rwb thaiv tsev thickness yog ua raws li cov kev cai. Thaum cov khoom tiav lawm npaj xa tuaj, cov tsos thiab kev ua tau zoo yuav tsum tau ua tib zoo xyuas dua. Tsuas yog thaum txhua qhov ntsuas tau tsim nyog tuaj yeem ntim thiab xa tawm. Lawv yeej tsom ntsoov rau tag nrho cov txheej txheem thiab tsis txhob cia ib qho khoom tsis raug mus txog rau cov neeg siv khoom txhais tes.

Khoom Specifications

Hluav taws xob Tus coj	tag nrho txoj kab uas hla phiaj tus nqi	Tus coj tsis kam (20 ℃) (Ω/km)	Hluav taws xob Tus coj	tag nrho txoj kab uas hla phiaj tus nqi	Tus coj tsis kam (20 ℃) (Ω/km)
0.25	0.59	370.20	0.50	0.84	89.95
0.26	0.6	358.40	0.55	0.89	78.15
0.27	0.61	331.40	0.60	0.94	65.26
0.28	0.62	294.10	0.65	0.99	55.31
0.29	0.63	285.70	0.70	1.04	47.47
0.30	0.64	254.00	0.75	1.09	41.19
0.32	0.66	222.80	0.80	1.14	36.08
0.35	0.69	185.70	0.85	1.19	31.87
0.37	0.71	165.90	0.90	1.24	28.35
0.40	0.74	141.70	0.95	1.29	25.38
0.45	0.79	112.10	1.00	1.34	23.33
