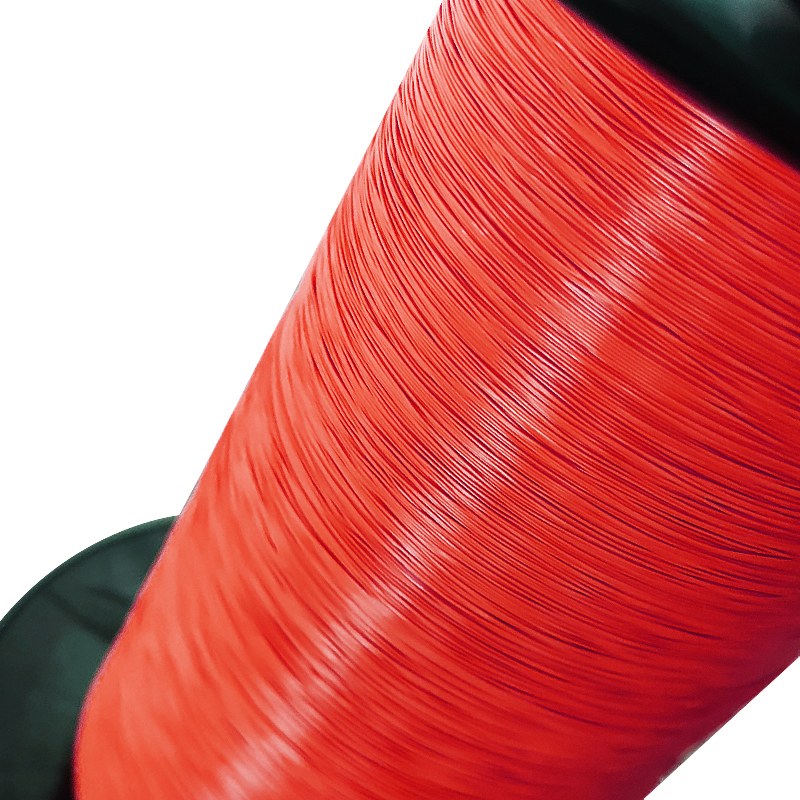

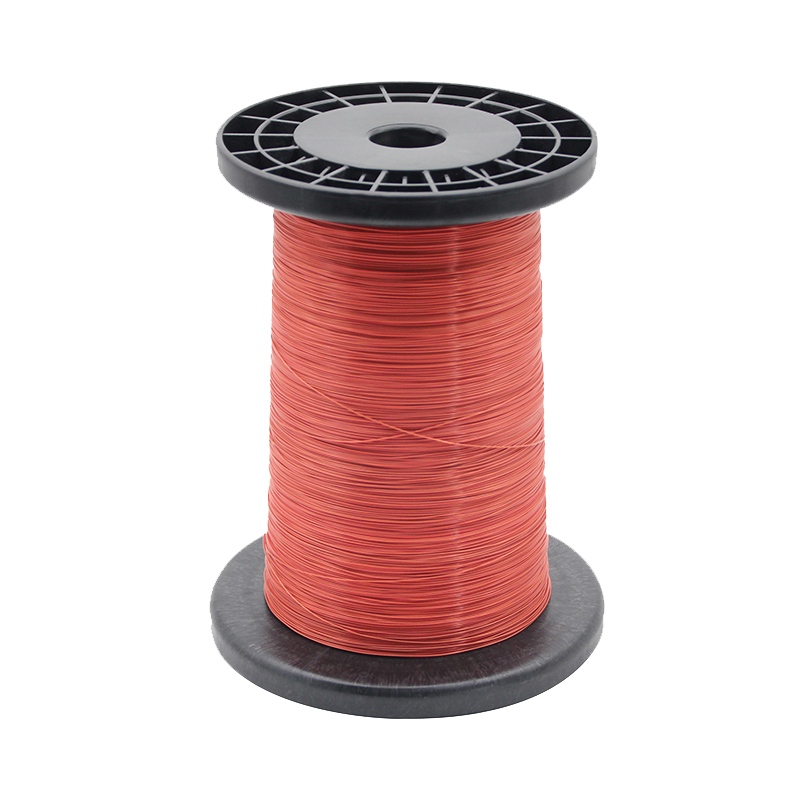

Triple Insulated Hlau
Lub Huaying Triple Insulated Hlau yog ib yam khoom zoo heev uas tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Lub tuam txhab no tsis muaj kev lag luam zoo tib yam, tau mob siab rau ib xyoo caum rau kev lag luam insulated hlau. Tshaj li kaum xyoo no, lub tuam txhab tau nce kev paub dhau los thiab kev txawj ntse, tsim lub hauv paus ruaj khov hauv kev lag luam. Lub tuam txhab tuav ntau tshaj 10 kev patents, boasts ib pab neeg R & D ntawm ntau tshaj 20 cov tub txawg, thiab boasts tag nrho cov neeg ua hauj lwm tshaj 100, tag nrho cov uas yog tim khawv rau nws lub zog. Los ntawm kev tshawb nrhiav thev naus laus zis rau niaj hnub no kev paub txog cov thev naus laus zis tseem ceeb rau ntau yam khoom lag luam, peb kev mob siab rau thiab tsom mus rau kev tshawb fawb thiab kev loj hlob tau ua rau peb ua tiav qhov kev hloov pauv ntawm kos, los ntawm txoj haujlwm tsis muaj zog mus rau qhov muaj zog, thiab tsim kom muaj lub hom phiaj kev lag luam hauv kev lag luam.
Yeej-yeej khoom kev koom tes

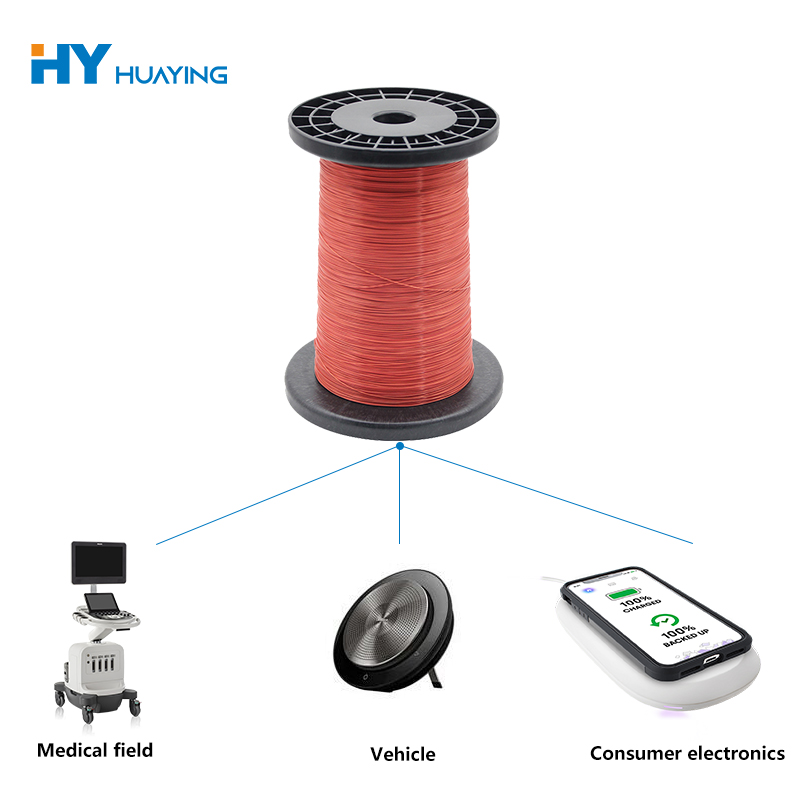

Cov tuam txhab loj xws li Xiaomi, Huawei, thiab BYD yog ntawm peb cov neeg koom tes ntev. Hauv kev koom tes nrog Xiaomi, Huaying Triple Insulated Hlau yog siv rau hauv cov khoom xws li Xiaomi lub xov tooj ntawm tes fais fab nyiaj hauv tuam txhab nyiaj, ua kom lub zog ruaj khov. Huawei kuj tau xaiv Huaying Triple Insulated Hlau rau nws 5G lub hauv paus chaw nres tsheb kev tsim kho, hais txog nws cov rwb thaiv tsev zoo heev thiab kev ntseeg siab hauv cov cheeb tsam nyuaj. BYD kuj tseem siv cov khoom no hauv cov khoom siv rau lub zog tshiab, pab txhawb rau kev tsim kho tsheb tshiab lub zog. Cov kev sib koom tes no tsis yog tsuas yog kev lees paub ntawm peb cov khoom zoo, tab sis kuj yog ib qho pov thawj muaj zog rau peb cov khoom muaj zog.
Khoom tsim qauv
Lub Huaying Triple Insulated Hlau muaj qhov tshwj xeeb tsim qauv. Lub hauv paus conductor yog lub conductive core. Ib leeg-ntxhais qauv siv tooj liab liab, enameled hlau, los yog tinned hlau; multi-core qauv siv stranded enameled hlau los yog tinned hlau. Txawm hais tias tus tsim, ruaj khov conductivity yog guaranteed. Cov tub ntxhais yog them nrog peb txheej rwb thaiv tsev: PET + PET + PA. Qhov sib xyaw ua ke ntawm peb txheej no nce mus txog 0.09-0.1mm (cov qauv tso tseg kuj muaj qhov tuab ntawm 0.1mm). Qhov no peb txheej txheej rwb thaiv tsev yog tshwj xeeb tshaj yog muaj zog, boasting lub zog dielectric ntawm 6kV / 5mA / 1min thiab tiv thaiv pinholes. Nws muaj txiaj ntsig zoo tiv thaiv kev phom sij xws li xau thiab luv luv, ua kom muaj kev nyab xeeb ntawm ntau yam khoom siv hluav taws xob.
Product Quality Assurance
Txhua yob ntawm Huaying Triple Insulated Hlau tau dhau los ua kev soj ntsuam nruj, ntau yam kev soj ntsuam ua ntej tawm hauv lub hoobkas. Ua ntej, qhov tsos yog ua tib zoo tshuaj xyuas rau me me flaws thiab xim unevenness. Dimensions kuj tseem ceeb heev, nrog rau txoj kab uas hla thiab rwb thaiv tsev thickness precisely ntsuas kom ua raws li cov qauv specifications. Kev ntsuas elongation tseem ua tau los xyuas kom muaj kev ruaj ntseg nyob rau hauv qhov nro. Flexibility thiab adhesion kuj raug sim los xyuas kom cov rwb thaiv tsev nyob ruaj ntseg rau tus neeg xyuas pib, tiv thaiv nws los ntawm kev poob thaum siv. Qhov tseem ceeb tshaj plaws, qhov ntsuas hluav taws xob tiv thaiv simulates ib puag ncig high-voltage los xyuas qhov rwb thaiv tsev lub zog. Tsuas yog tom qab dhau tag nrho cov kev ntsuam xyuas tuaj yeem xaim tawm mus rau lub khw. Tsis tas li ntawd, peb muaj kev ruaj ntseg zoo rau cov ntaub ntawv thiab kev ua haujlwm ntawm peb cov khoom. Yog tias koj ntsib teeb meem zoo thaum siv lawv, peb yuav teb tam sim ntawd thiab npaj cov neeg ua haujlwm tom qab muag los pab koj daws qhov teeb meem. Peb yuav twv yuav raug hu ua peb qhov zoo tshaj plaws los tiv thaiv koj cov cai thiab kev txaus siab thiab cia koj siv nws nrog kev thaj yeeb nyab xeeb.
| tus thawj coj | tag nrho txoj kab uas hla tus nqi | Tus coj tsis kam (20 ℃) (Ω2/km) | tus thawj coj | tag nrho txoj kab uas hla tus nqi | Tus coj tsis kam (20 ℃) (Ω2/km) |
| 0.17x 7 | 0.781 | 128.5 | 0,35x 7 | 1.331 | 30.3 |
| 0,18x 7 | 0.811 | 114.6 | 0,37x 7 | 1.392 | 27.1 |
| 0.20 x 7 | 0.872 | 92.8 | 0.20 x 10 | 1.004 | 65.0 |
| 0,23x 7 | 0.964 | 70.2 | 0.20 x 15 | 1.184 | 43.3 |
| 0.23 x 15 | 1.318 | 32.8 | 0.20 × 25 hli | 1.471 | 32.5 |
| 0.25 x 7 | 1.025 | 27.7 | 0,21x 7 | 0.903 | 254.00 |
| 0.25 x 19 | 1.559 | 21.9 | 0.22 x 7 | 0.933 | 26.0 |
| 0,27x 7 | 1.086 | 51.0 | 0.25 × 2 | 0.700 | 84.2 |
| 0.30 x 7 | 1.178 | 41.3 |
|
||
