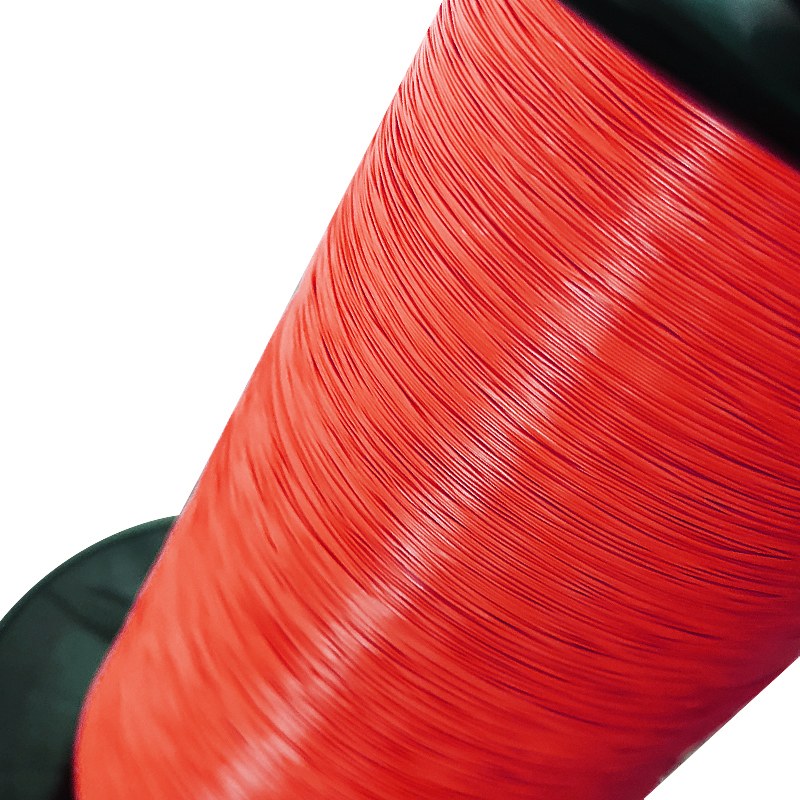

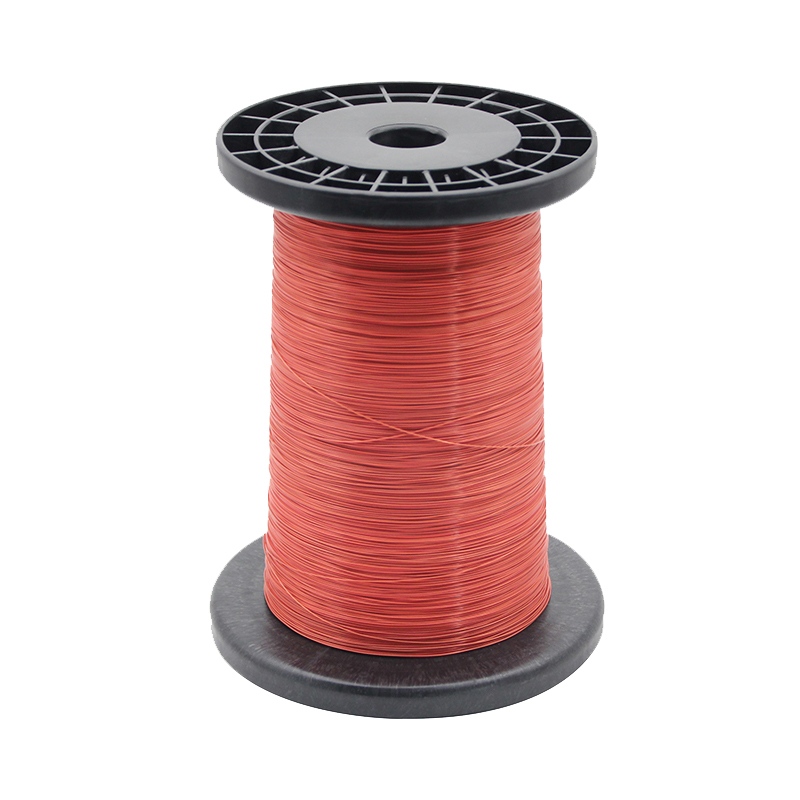

Solderable Triple Insulated Hlau

Huizhou Huaying Electronic Technology Co., Ltd. yog cov chaw tsim khoom thiab chaw muag khoom ntawm Huaying Solderable Triple Insulated Hlau. Los ntawm kev pib txo qis mus rau txoj haujlwm tseem ceeb hauv kev lag luam, Huaying Electronics tau tso siab rau nws txoj kev mob siab rau kev tshawb fawb, kev tsim kho, thiab kev tsim cov hlau insulated. Los ntawm kev nce qib tsis tu ncua, lawv tau dhau los ua tus neeg tso siab rau hauv kev lag luam, muab cov khoom lag luam zoo thiab cov kev pabcuam zoo rau ntau lub tuam txhab. Yog li, xaiv peb thiab muaj kev ntseeg siab.

Xa lus nug

Product Description

Ntau yam khoom xaiv

Huaying Solderable Triple Insulated Hlau muaj ntau yam kev xaiv ntawm cov qauv, suav nrog ob txheej peb-txheej ib leeg-strand thiab peb-txheej multi-strand insulated xov hlau. Txawm hais tias koj daim ntawv thov lossis cov kev xav tau tshwj xeeb, peb tuaj yeem ua tau raws li koj xav tau. Lub neej ntawd xim yog daj, tab sis peb tuaj yeem kho koj cov xim yog tias koj muaj qhov tshwj xeeb nyiam. Txawm hais tias koj nyiam qhov kev txiav txim siab thiab ua kom zoo nkauj lossis kov ntawm tus kheej, peb tuaj yeem ua raws li koj qhov yuav tsum tau ua, muab koj cov khoom sib txawv thiab txawv txav.

Cov khoom ua tau zoo heev

Huaying Solderable Triple Insulated Wire qhov kev ua tau zoo yog qhov ua tau zoo, ua rau kev lag luam. Nws lub zog rwb thaiv tsev yog qhov tshwj xeeb siab; txawm tias ob txheej tuaj yeem tiv taus qhov hluav taws xob muaj kev nyab xeeb ntawm 2000V AC. Txawm nyob rau hauv ib puag ncig hluav taws xob nyuaj, nws zoo tiv thaiv kom tsis txhob xau thiab luv luv Circuit Court, kom ntseeg tau tias kev ua haujlwm zoo ntawm cov khoom siv. Tsis tas li ntawd, nws qhov ceev ceev tam sim no tso cai rau kev xa hluav taws xob ntau dua, txhim kho kev siv hluav taws xob zoo. Siv nws rau cua hloov pauv tuaj yeem txo lawv qhov hnyav thiab qhov loj me, ua rau muaj txiaj ntsig zoo rau cov khoom siv me me thiab lub teeb hnyav thiab txhim kho koj cov khoom lag luam kev sib tw.

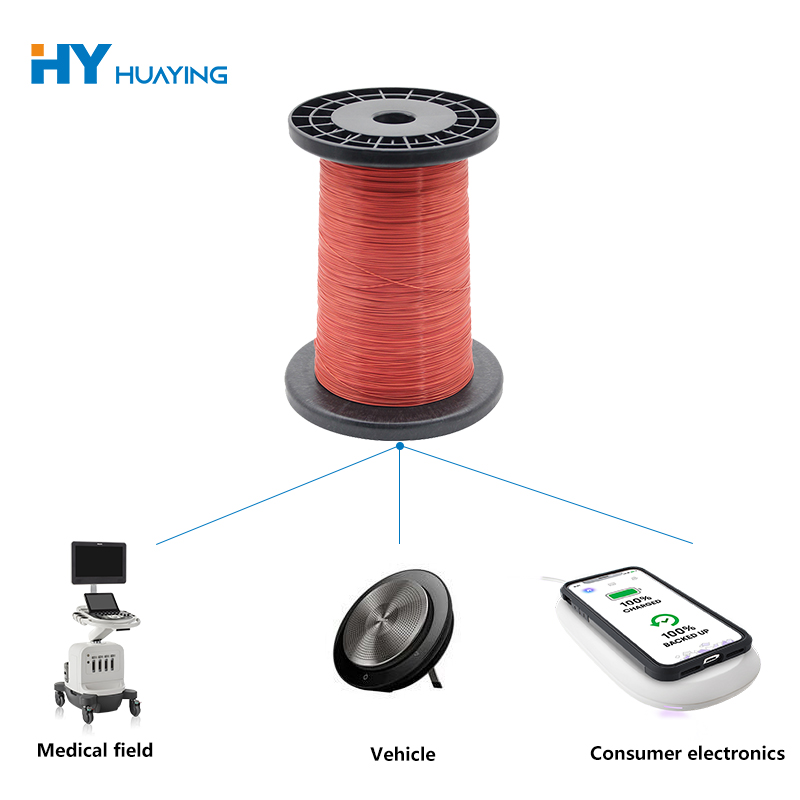

Kev siv dav

Hais txog ntau yam kev siv rau Huaying Solderable Triple Insulated Wire, daim ntawv thov muaj ntau heev. Kev sib xyaw ua ke rau hauv cov khoom siv hluav taws xob hloov hluav taws xob txhim kho lub zog xa hluav taws xob, ua kom muaj kev ruaj ntseg thiab xa cov hluav taws xob zoo ib yam rau ntau yam khoom siv hluav taws xob. Siv nws ntawm cov nplhaib sib nqus txhim kho lawv cov kev ua tau zoo, ua rau kev hloov hluav taws xob electromagnetic ntau dua. Nws yog qhov tseem ceeb hauv cov khoom siv hluav taws xob hauv computer thiab lub xov tooj ntawm tes - kom ntseeg tau tias muaj kev nyab xeeb thiab ua haujlwm ntawm kev them cov khoom siv no. Txawm nyob rau hauv industrial ntau lawm los yog lub neej txhua hnub, nws yog ubiquitous, ntsiag to pab txhawb kom yooj yim thiab kev txhawb nqa ntawm peb lub neej thiab ua hauj lwm.

Solderable Triple Insulated Hlau

tus thawj coj	zuag qhia tag nrho txoj kab uas hla phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ℃) (Ω2 / km)	tus thawj coj	zuag qhia tag nrho txoj kab uas hla phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ℃) (Ω2 / km)
0.15	0.350	1037.00	0.35	0.550	185.70
0.16	0.360	908.80	0.37	0.570	165.90
0.17	0.370	853.50	0.40	0.600	141.70
0.18	0.380	757.20	0.45	0.650	112.10
0.20	0.400	577.20	0.50	0.700	89.95
0.21	0.410	549.00	0.55	0.750	78.15
0.22	0.420	498.40	0.60	0.800	65.26
0.23	0.430	454.50	0.65	0.850	55.31
0.24	0.440	416.20	0.70	0.900	47.47
0.25	0.450	370.20	0.75	0.950	41.49
0.26	0.460	358.40	0.80	1.000	36.08
0.27	0.470	331.40	0.85	1.050	31.87
0.28	0.480	294.10	0.90	1.100	28.35
0.29	0.490	285.70	0.95	1.150	25.38
0.30	0.500	254.00	1.00	1.200	23.33
0.32	0.520	222.80

Series specification ntawm stranded peb-txheej insulated hlau

tus thawj coj	zuag qhia tag nrho txoj kab uas hla phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ℃) (Ω2 / km)	tus thawj coj	zuag qhia tag nrho txoj kab uas hla phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ℃) (Ω2 / km)
0.17x 7	0.781	128.5	0,35x 7	1.331	30.3
0,18x 7	0.811	114.6	0,37x 7	1.392	27.1
0.20 x 7	0.872	92.8	0.20 x 10	1.004	65.0
0,23x 7	0.964	70.2	0.20 x 15	1.184	43.3
0.23 x 15	1.318	32.8	0.20 x 25	1.471	32.5
0.25 x 7	1.025	27.7	0,21x 7	0.903	254.00
0.25 x 19	1.559	21.9	0.22 x 7	0.933	26.0
0,27x 7	1.086	51.0	0.25 × 2	0.700	84.2
0.30 x 7	1.178	41.3
