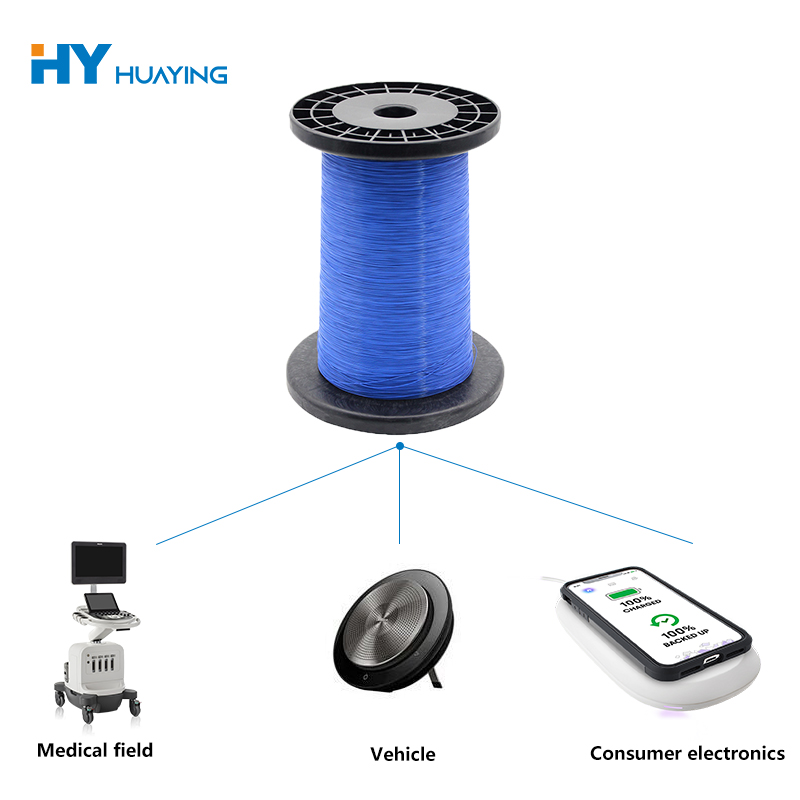

Class B Peb-Layer Insulated Hlau

Huaying Class B Peb-Layer Insulated Hlau yog tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Tom qab cov khoom no yog Huizhou Huaying Electronic Technology Co., Ltd. Lub tuam txhab no tau koom tes nrog rau daim teb no txij li xyoo 2012, thiab tau mob siab rau ntau xyoo rau nws txoj kev loj hlob, ua rau nws yog ib lub tuam txhab tsim thiab txhim khu kev qha. Txawm hais tias ntau dua, nws tuav cov ntawv pov thawj muaj koob npe ntawm National High-Tech Enterprise thiab Kev Lag Luam Tshwj Xeeb thiab Tshiab, muab ob npaug lav ntawm cov khoom zoo thiab lub hauv paus ruaj khov. Kev xaiv peb txhais tau tias xaiv tus khub uas ntseeg siab thiab muaj peev xwm!

Xa lus nug

Product Description

Khoom Muag thiab Specifications

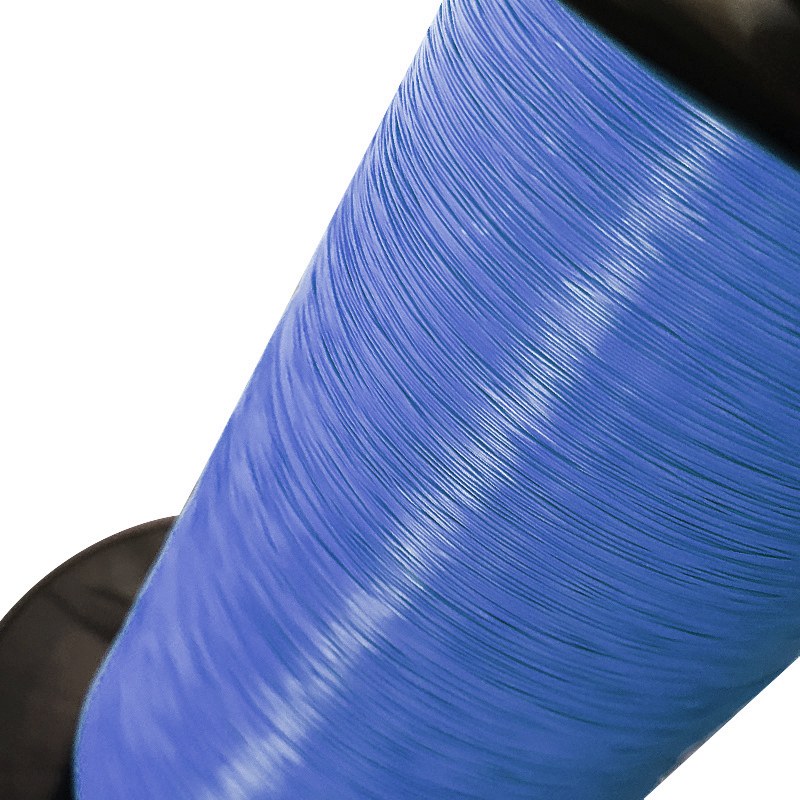

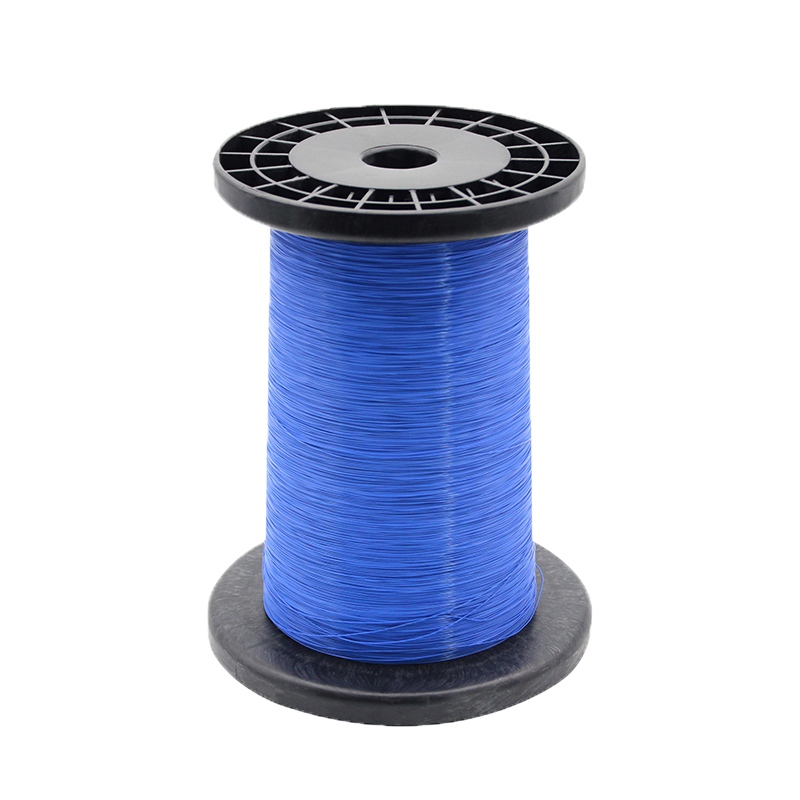

Qhov no Huaying Class B Peb-txheej Insulated Hlau yog qhov zoo nkauj zoo nkauj, nrog lub neej ntawd, xim huv si uas pom qhov pom kev zoo siab thiab sib xyaw ua ke rau txhua qhov chaw tsim khoom. Cov khoom kuj tuaj nyob rau hauv ib tug ntau yam ntawm qhov ntau thiab tsawg, nrog rau peb-txheej ib leeg-strand thiab peb-txheej multi-strand, zoo tagnrho haum rau ntau lawm txheej txheem. Conductor specifications npog qhov ntau ntawm 0.15-1.00mm. Tsis txhob txhawj txog qhov tshwj xeeb qhov yuav tsum tau muaj; cia li qhia rau peb paub thiab peb tuaj yeem kho lawv. Peb muab qhov tshwj xeeb yooj yooj yim, kom ntseeg tau qhov sib txuam rau ob qho tib si me me-batch sim khiav thiab cov khoom loj.

Cov khoom siv coj ua

Huaying Class B Peb-Layer Insulated Hlau muaj ntau yam kev xaiv ntawm cov khoom siv, xws li muaj ntau yam "tsev iav" rau koj cov khoom, npaj rau txhua daim ntawv thov. Ib leeg-strand qauv yog muaj nrog ib leeg-core liab qab tooj liab, enameled hlau, los yog tinned hlau. Ib leeg-ntxhais liab qab tooj liab ua hluav taws xob sai, enameled xaim muab kev ruaj ntseg rwb thaiv tsev, thiab tinned hlau muaj qhov tshwj xeeb corrosion kuj. Multi-strand qauv feature multi-core enameled lossis tinned hlau, muab tshwj xeeb yooj yooj yim thiab siv zog khoov. Txawm hais tias siv nyob rau hauv high-frequency los yog dav circuits, nyob rau hauv ntub los yog qhuav ib puag ncig, koj muaj peev xwm xaiv tus neeg xyuas pib cov ntaub ntawv uas suits koj xav tau kev pab, zoo kawg nkaus haum cov kev cai ntawm txhua yam scenario!

Product Elongation Testing

Kev ntsuam xyuas elongation yog ib kauj ruam tseem ceeb hauv kev ua kom lub zog ntawm Huaying Class B peb-txheej insulated hlau, thiab peb ua nws tiag tiag. Thaum lub sij hawm sim, peb thawj zaug coj tus qauv kwv yees li 400mm ntev los ntawm cov hlau tiav. Ib qho 250mm gauge hlau qhov sib nrug yog ua tib zoo siv rau hauv nruab nrab ntawm cov qauv. Tom qab ntawd cov qauv raug rub tawm los ntawm kev siv lub tshuab ntsuas tensile ntawm qhov qeeb qeeb ntawm tsawg dua 300mm / min. Tom qab tawg, cov seem uas tau muab tshem tawm yog ua tib zoo txuas dua, thiab qhov ntev ntawm cov xov hlau raug ntsuas raug ntsuas. Tom qab ntawd elongation yog suav nrog cov qauv. Yog tias tus qauv ua txhaum tawm sab nraud ntawm lub ntsuas hluav taws xob, qhov kev ntsuas tsis raug thiab raug coj mus kuaj tshiab. Qhov no ua kom ntseeg tau tias txhua pawg ntawm cov ntaub ntawv yog qhov tseeb thiab txhim khu kev qha, lav qhov toughness ntawm cov khoom.

tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)	tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)
0.15	0.400	1037.00	0.35	0.600	185.70
0.16	0.410	908.80	0.37	0.620	165.90
0.17	0.420	853.50	0.40	0.650	141.70
0.18	0.430	757.20	0.45	0.700	112.10
0.20	0.450	577.20	0.50	0.750	89.95
0.21	0.46	549.00	0.55	0.800	78.15
0.22	0.470	498.40	0.60	0.850	65.26
0.23	0.480	454.50	0.65	0.900	55.31
0.24	0.490	416.20	0.70	0.950	47.47
0.25	0.500	370.20	0.75	1.000	41.49
0.26	0.510	358.40	0.80	1.050	36.08
0.27	0.520	331.40	0.85	1.100	31.87
0.28	0.530	294.10	0.90	1.150	28.35
0.29	0.540	285.70	0.95	1.200	25.38
0.30	0.550	254.00	1.00	1.250	23.33
0.32	0.570	222.80
