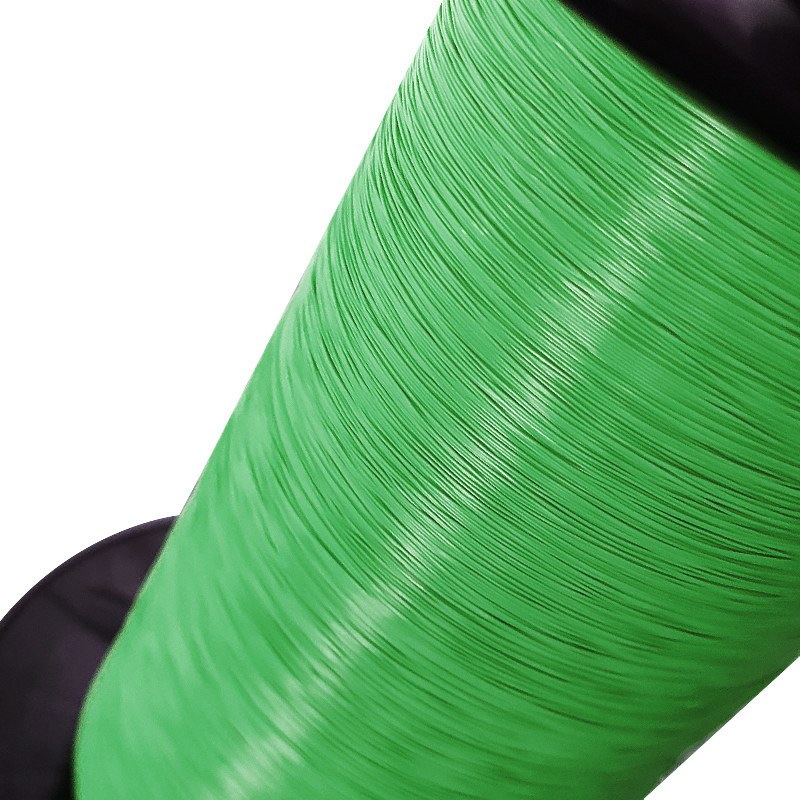

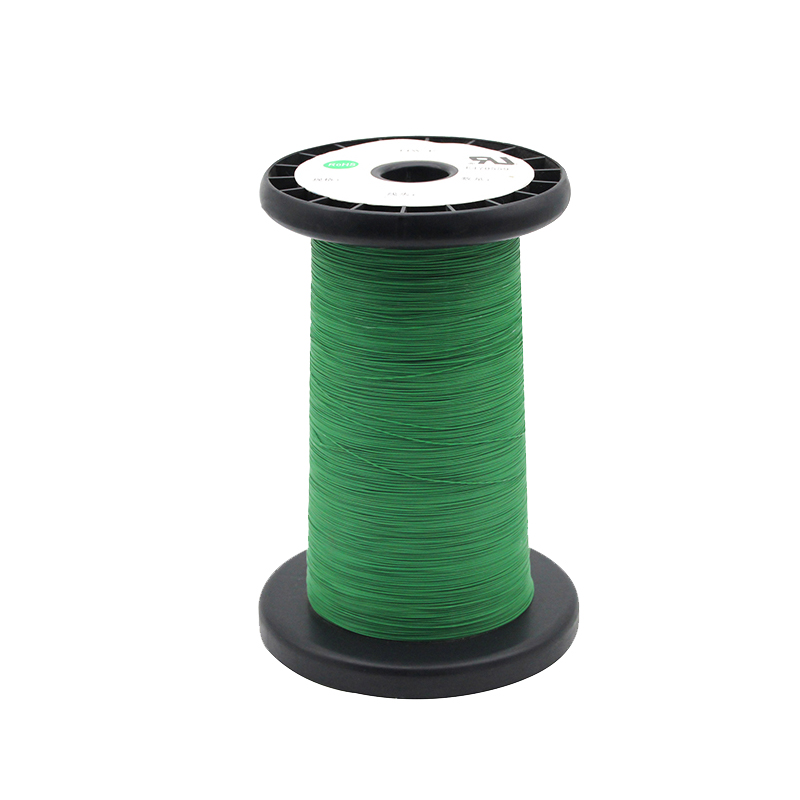

Class F Peb-Layer Insulated Hlau
Huaying Class F Peb-Layer Insulated Hlau yog tsim nyob rau hauv Suav teb los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Peb lub tuam txhab tsis tsuas yog tuav tshaj kaum patents, tab sis kuj koom tes nrog lub koom haum tshawb fawb Shenzhen ntawm Huazhong University of Science thiab Technology ntawm R & D, seamlessly integrating lub tsev kawm ntawv txoj kev tshawb fawb muaj zog nrog peb tus kheej ntau lawm kev. Qhov tseem ceeb tshaj plaws yog qhov tseeb tias cov tuam txhab loj uas xav tau cov khoom lag luam xav tau, xws li Xiaomi, Huawei, thiab BYD, tau siv cov khoom no tas li, ua kom pom nws txoj kev ntseeg siab thiab kev thaj yeeb ntawm lub siab.
Cov ntaub ntawv rwb thaiv tsev txheej
Cov txheej rwb thaiv tsev yog cov txheej txheem tiv thaiv ntawm Huaying Class F Peb-Layer Insulated Hlau, thiab nws cov ntaub ntawv zoo tshaj plaws. Nws txoj kev tsim peb txheej ntawm PET + PET + PA ua zoo li "peb-txheej armor" rau tus neeg xyuas pib, muab kev tiv thaiv siab tshaj plaws. Lub thickness kuj yog precisely tswj. Tag nrho cov rwb thaiv tsev thickness ntawm ib leeg-strand khoom yog 0.09-0.1mm, thaum lub sij hawm ntawm multi-strand khoom yog 0.1 hli. Txawm hais tias nws yog ib leeg lossis ntau txoj hlua, lub thickness ntawm txhua txheej rwb thaiv tsev yog nruj me ntsis tswj rau 0.03-0.035mm. Kev sim siv cov cuab yeej kev tshaj lij, qhov sib xws yog qhov tsis muaj kev txiav txim siab, muab kev tiv thaiv zoo rau tus neeg xyuas pib.
Product Core Advantages

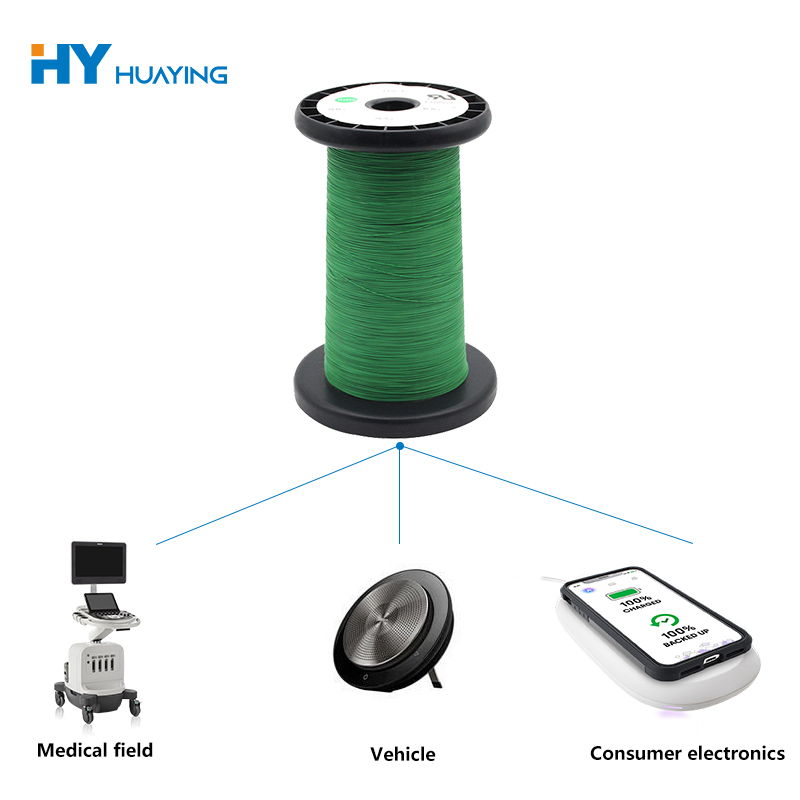

Huaying Class F Peb-Layer Insulated Wire cov txiaj ntsig tseem ceeb tshwj xeeb hauv kev lag luam mob cov ntsiab lus, muab kev lag luam zoo "lub teeb ntsuab" rau kev tsim khoom. Siv nws ncaj qha txo cov xovxwm loj, tso cai rau kev siv ntau dua ntawm qhov chaw tsim khoom. Nws kuj tseem txhim kho kev tsim khoom, ua kom cov txheej txheem uas yav tas los xav tau ntau kauj ruam kom ua tiav hauv ib kauj ruam. Qhov tseem ceeb tshaj, nws txo cov nqi tag nrho, txuag nyiaj ntawm txhua theem, los ntawm kev yuav khoom mus rau kev tsim khoom thiab kev ua haujlwm. Rau cov lag luam, cov txiaj ntsig no tsis yog fluff xwb; lawv muab cov txiaj ntsig zoo, muab cov txiaj ntsig zoo tshaj plaws, ua rau nws siv tau thiab siv tau zoo.
Khoom Thermal Shock Test
Qhov kev ntsuam xyuas thermal shock zoo li muab Huaying Class F peb-txheej insulated hlau rau kev xeem. Ua ntej, ib qho piv txwv tsawg kawg yog 305mm nyob rau hauv ntev yog nruj nreem qhwv nyob ib ncig ntawm ib tug du puag ncig pas nrig, tag nrho ntawm 10 lem, ntawm ib tug tswj ceev ntawm 1 mus rau 3 lem ib ob. Lub nro meej meej ntawm 118Mp / mm² yog siv rau cov hlau kom ntseeg tau tias cov qauv ua raws li tus pas nrig. Thaum lub sij hawm wrapping txheej txheem, cov neeg ua hauj lwm saib xyuas heev kom tsis txhob ncab, sib tshooj, thiab puas. Tom qab qhwv, cov qauv raug tshem tawm ntawm tus pas nrig thiab muab tso rau hauv qhov cub ntawm qhov kub thiab txias hauv Table 5 rau 30 feeb, nrog rau qhov kub thiab txias ntawm ± 5 ° C. Tom qab ci, cov qauv raug tshem tawm ntawm qhov cub thiab tso cai rau kom txias ib txwm mus rau chav sov. Cov qauv saum npoo yog ua tib zoo tshuaj xyuas siv lub iav magnifying nrog lub magnification teev nyob rau hauv Table 6. Cov khoom yog suav tias tsis tsim nyog yog tias txawm tias qhov tawg me ntsis raug kuaj pom. Tsis muaj kev zam rau qhov tsis xws luag.
| tus thawj coj | tag nrho txoj kab uas hla tus nqi | Tus coj tsis kam (20 ℃) (Ω2/km) | tus thawj coj | tag nrho txoj kab uas hla tus nqi | Tus coj tsis kam (20 ℃) (Ω2/km) |
| 0.17x 7 | 0.781 | 128.5 | 0,35x 7 | 1.331 | 30.3 |
| 0,18x 7 | 0.811 | 114.6 | 0,37x 7 | 1.392 | 27.1 |
| 0.20 x 7 | 0.872 | 92.8 | 0.20 x 10 | 1.004 | 65.0 |
| 0,23x 7 | 0.964 | 70.2 | 0.20 x 15 | 1.184 | 43.3 |
| 0.23 x 15 | 1.318 | 32.8 | 0.20 × 25 hli | 1.471 | 32.5 |
| 0.25 x 7 | 1.025 | 27.7 | 0,21x 7 | 0.903 | 254.00 |
| 0.25 x 19 | 1.559 | 21.9 | 0.22 x 7 | 0.933 | 26.0 |
| 0,27x 7 | 1.086 | 51.0 | 0.25 × 2 | 0.700 | 84.2 |
| 0.30 x 7 | 1.178 | 41.3 |
|
||
