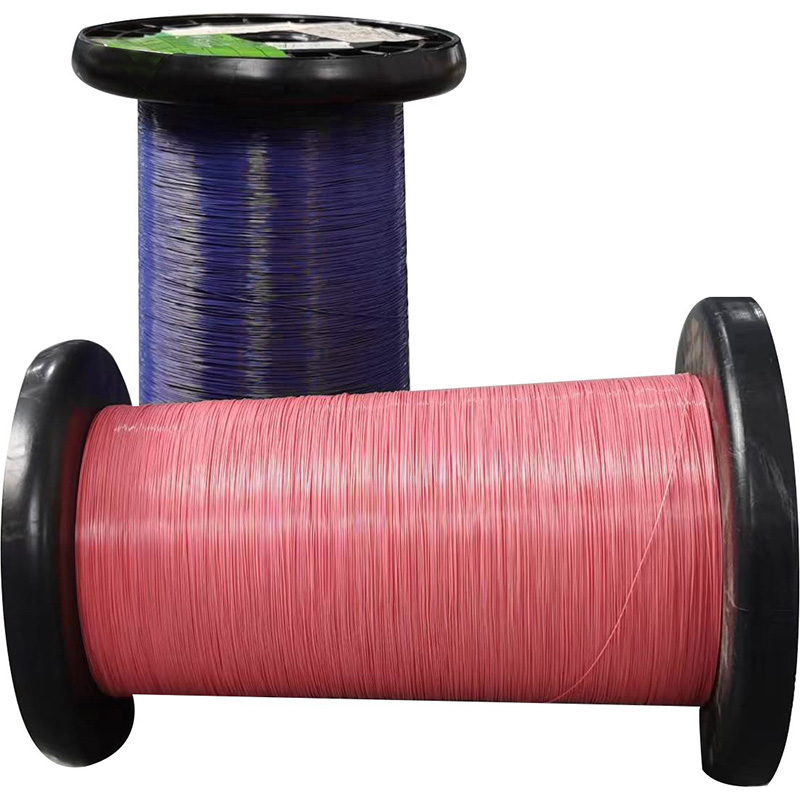

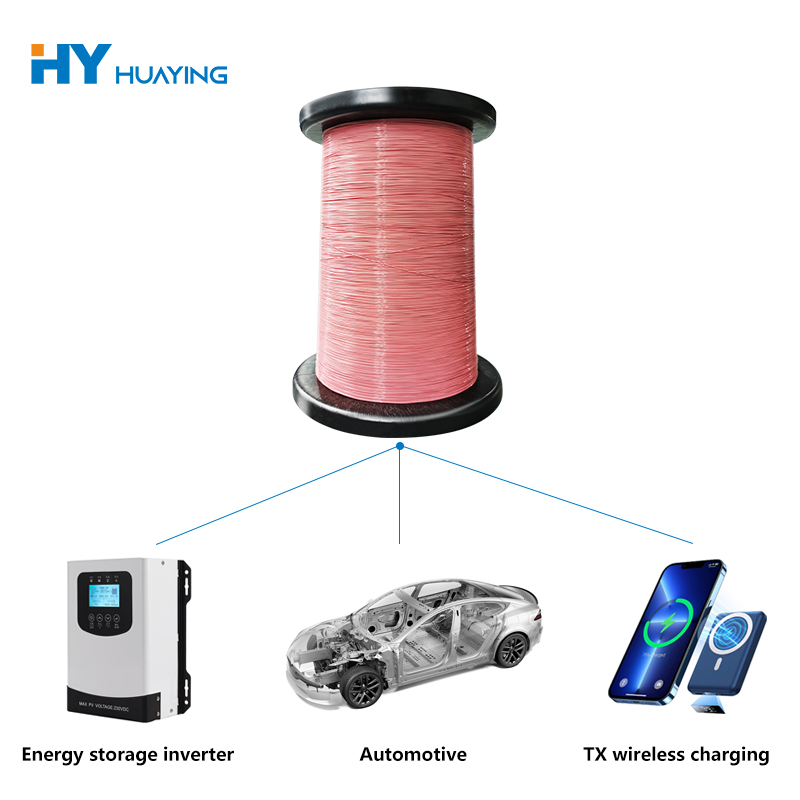

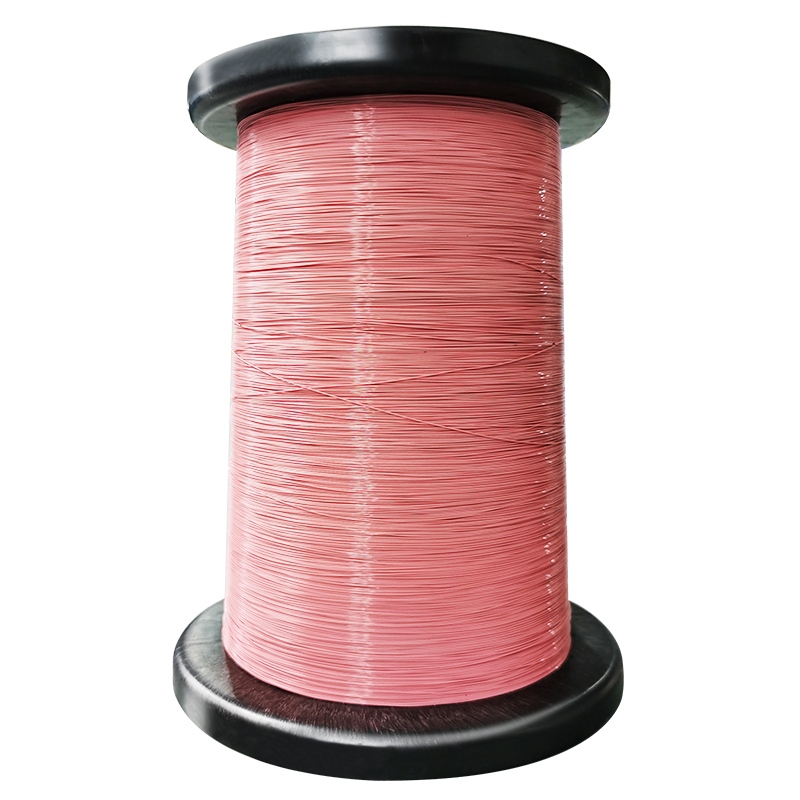

PTFE Insulated Magnet Hlau

Qhov no Huaying PTFE Insulated Magnet Hlau yog tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. Koj puas paub lub tuam txhab no? Nws tsis yog me me feat. Nws cov neeg siv khoom yog cov tuam txhab lag luam paub zoo-peb cov khoom siv hauv Xiaomi lub xov tooj ntawm tes chargers, Huawei cov khoom siv sib txuas lus, thiab BYD lub zog tshiab tsheb. Xav txog yuav ua li cas xav tau cov tuam txhab lag luam loj no ntawm lawv cov neeg muag khoom, thiab lawv cov qauv kev tswj hwm zoo yog qhov xav tau zoo kawg. Peb lub peev xwm los muab lawv tsis tu ncua qhia tau tias peb cov khoom zoo tau raug sim los ntawm kev ua lag luam ntev, thiab qhov no Huaying PTFE Insulated Magnet Hlau tsis muaj qhov tshwj xeeb!

Xa lus nug

Product Description

Cov khoom pov thawj

Peb lub tuam txhab cov ntawv pov thawj muaj nyob txhua qhov chaw! Piv txwv li, cov npe xws li National High-Tech Enterprise thiab Specialized New Enterprise tsis tau txais txiaj ntsig li cas. Tsis yog txhua lub tuam txhab tuaj yeem ua tiav cov kev tsim nyog no; lawv xav tau technology tiag tiag thiab muaj peev xwm ua pov thawj. Tsis hais txog kev tswj hwm ntau lawm, peb tuav ISO 9001, ISO 14001, thiab IATF 16949 ntawv pov thawj. Los ntawm cov khoom siv raw khoom mus rau lub Hoobkas tsim, txhua kauj ruam yog saib xyuas nruj. Ib yam li nrhiav QS cim thaum yuav khoom noj, cov ntawv pov thawj no muab kev thaj yeeb rau koj thaum yuav Huaying PTFE Insulated Magnet Wire.

Khoom siv

Lub Huaying PTFE Insulated Magnet Hlau siv ib leeg-core liab qab tooj liab ua tus neeg xyuas pib. Cov khoom no muaj qhov tshwj xeeb conductivity ntawm cov hlau sib xws! Nws qhov tsis kam yog qhov tsawg heev, ua kom muaj cua sov tsawg thaum muaj zog, tso cai rau tam sim no ntws mus rau qhov tsis muaj zog thiab du. Tsis tas yuav txhawj xeeb txog cov cua kub ntau dhau los cuam tshuam cov khoom siv ua haujlwm. Yog tias koj muaj kev xav tau tshwj xeeb, peb zoo siab los pab. Piv txwv li, yog tias koj cov khoom siv yuav tsum tau siv nyob rau hauv ib puag ncig corrosive thiab koj xav hloov cov tub ntxhais hlau mus rau tinned tooj liab lossis lwm yam khoom tsim nyog, peb muab kev hloov kho tau yooj yim kom ntseeg tau tias koj qhov kev xav tau tiag tiag. Thaum kawg, peb lub hom phiaj yog los pab txhua tus neeg siv khoom txhim kho lawv cov khoom tsim tau thiab muab kev txhawj xeeb thiab kev paub zoo!

Khoom Durability

Qhov no Huaying PTFE Insulated Magnet Hlau tiv taus lub sij hawm ntev raug rau sab nraum zoov ib puag ncig thiab huab cua hnyav nrog tsawg degradation hauv kev ua tau zoo. Piv txwv li, ru tsev photovoltaic inverter thaiv kev paub txhua hnub raug tshav ntuj, nag, cua, daus, thiab UV hluav taws xob. Cov kab hluav taws xob niaj hnub muaj kev rwb thaiv tsev degradation thiab tawg hauv ob peb xyoos, yuav tsum tau hloov tas li. Cov hlau no, txawm li cas los xij, yooj yim tiv thaiv cov teebmeem ntawm kev kub ntxhov thiab UV hluav taws xob, yaig los ntawm nag thiab daus, thiab txawm tias huab cua los ntawm cov plua plav thiab cov kab mob. Nws qhov chaw saum npoo thiab kev ua haujlwm hluav taws xob nyob ruaj khov. Txawm tias tom qab kaum lossis yim xyoo, nws tseem yuav zoo li zoo li tshiab, tsis muaj kev hloov pauv hauv kev coj ua.

Specifications (sib series.Conventional)

Tus coj		Ua tiav sab nraud txoj kab uas hla			Tus coj tsis kam (20 degrees Celsius) (Ω/km)	Elongation %
Tus coj	Ua siab ntev	Yam tsawg kawg nkaus Tus nqi	Hom phiaj Tus nqi	Qhov siab tshaj plaws Tus nqi	Tus coj tsis kam (20 degrees Celsius) (Ω/km)	Elongation %
0.15	0.008	0.342	0.350	0.358	1037.00	≥10%
0.16	0.008	0.352	0.360	0.368	908.80	≥10%
0.17	0.008	0.362	0.370	0.378	853.50	≥10%
0.18	0.008	0.372	0.380	0.388	757.20	≥10%
0.20	0.008	0.392	0.400	0.408	577.20	≥10%
0.21	0.008	0.402	0.410	0.418	549.00	≥10%
0.22	0.008	0.412	0.420	0.428	498.40	≥10%
0.23	0.008	0.422	0.430	0.438	454.50	≥10%
0.24	0.008	0.432	0.440	0.448	416.20	≥10%
0.25	0.008	0.442	0.450	0.458	370.20	≥10%
0.26	0.008	0.452	0.460	0.468	358.40	≥10%
0.27	0.008	0.462	0.470	0.478	331.40	≥15%
0.28	0.008	0.472	0.480	0.488	294.10	≥15%
0.29	0.008	0.482	0.490	0.498	285.70	≥15%
0.30	0.008	0.492	0.500	0.508	254.00	≥15%
0.32	0.008	0.512	0.520	0.528	222.80	≥15%
0.35	0.008	0.542	0.550	0.558	185.70	≥15%
0.37	0.008	0.562	0.570	0.578	165.90	≥15%
0.40	0.008	0.592	0.600	0.608	141.70	≥15%
0.45	0.008	0.642	0.650	0.658	112.10	≥15%
0.50	0.008	0.692	0.700	0.708	89.95	≥20%
0.55	0.008	0.742	0.750	0.758	78.15	≥20%
0.60	0.008	0.792	0.800	0.808	65.26	≥20%
0.65	0.008	0.842	0.850	0.858	55.31	≥20%
0.70	0.010	0.892	0.900	0.908	47.47	≥20%
0.75	0.010	0.942	0.950	0.958	41.19	≥20%
0.80	0.010	0.992	1.000	1.008	36.08	≥25%
0.85	0.010	1.042	1.050	1.058	31.87	≥25%
0.90	0.010	1.092	1.100	1.108	28.35	≥25%
0.95	0.010	1.142	1.150	1.158	25.38	≥25%
1.00	0.010	1.192	1.200	1.208	23.33	≥25%
