ETFE Insulated Magnet Hlau

Qhov no Huaying ETFE Insulated Magnet Hlau yog tsim los ntawm Huizhou Huaying Electronic Technology Co., Ltd. thiab muab rau cov neeg siv khoom hauv ntau lub teb chaws thoob ntiaj teb, tau txais kev qhuas ntau. Lub koob npe nrov no yog los ntawm peb cov khoom lag luam zoo, peb cov kev tshawb fawb tshwj xeeb, thiab peb cov txheej txheem tsim khoom nruj.

Xa lus nug

Product Description

Product Emergency Performance

Wb tham txog kev ua haujlwm kub ntxhov ntawm Huaying ETFE Insulated Magnet Wire. Nws qhov kev ua haujlwm kub ntxhov yog qhov tshwj xeeb tiag tiag! Koj puas paub tias nws qhov ntsuas pa oxygen tuaj yeem tshaj 90? Ua tsaug rau nws cov nplaim hluav taws zoo heev, nws tuaj yeem muaj qhov hluav taws kub zoo thaum muaj hluav taws xob luv luv, tiv thaiv nws los ntawm kev sib kis - qhov tseem ceeb hauv kev lag luam ib puag ncig. Txawm tias qhov zoo tshaj plaws: tom qab 5,000 teev ntawm UV nrawm dua kev kuaj, nws cov rwb thaiv tsev kuj tseem tswj tau ntau dua 95% ntawm nws cov nqi pib. Qhov kev ruaj ntseg zoo kawg li no yog qhov zoo kawg nkaus. Nws yog qhov tseeb vim qhov kev ntseeg siab no, txawm hais tias huab cua lossis ib puag ncig, nws tau dhau los ua cov khoom siv hlau nyiam rau 5G hauv paus chaw nres tsheb fais fab modules. Tib neeg xaiv nws rau nws txoj kev thaj yeeb nyab xeeb!

Kev Pabcuam Khoom Muag

Raws li rau Huaying customized ETFE Insulated Magnet Wire, peb muab kev pabcuam tshwj xeeb, ua kom tau raws li cov kev xav tau sib txawv. Ua ntej, hais txog cov lus qhia tshwj xeeb, peb tuaj yeem tsim qhov loj me, xws li 0.05mm txog 1.0mm, nrog rau cov khoom lag luam tshwj xeeb. Rau ntau txoj hlua hlau, peb tuaj yeem ua tiav qhov kev sib tw mus txog 3000p, nrog rau qhov tsis txaus ntseeg. Raws li rau cov khoom siv hluav taws xob, tooj liab thiab txhuas muaj rau xaiv. Tsis tas li ntawd, peb cov txheej txheem tsim khoom siv qhov kev soj ntsuam zoo hauv online, ua kom lub sijhawm teb ceev txawm tias me me. Tsis tas li ntawd, peb hloov kho cov nqi hlau thoob ntiaj teb txhua hnub, ua kom cov neeg siv khoom tau txais cov nqi yuav khoom zoo tshaj plaws thiab tsis txhob nkim nyiaj. Kev pab cuam tom qab muag kuj yog ib qho yooj yim. Peb lub tuam txhab tau tsim cov txheej txheem teb sai thiab pab pawg kws tshaj lij kev pabcuam ntawm kev tos txais txhua lub sijhawm, kom ntseeg tau tias koj ib txwm muaj tus neeg raug hu rau txhua yam lus nug. Kev yuav khoom ntau kuj suav nrog cov qauv kuaj dawb thiab txawm tias muaj kev pabcuam nrog daim ntawv thov tsim. Qhov kev xav zoo li cas! Txawm hais tias cov khoom batch ntawm cov khoom tawm ntawm lub Hoobkas, lawv tau nrog rau cov ntaub ntawv ua tiav thiab cov ntaub ntawv ntsuas kev ua haujlwm. Txhua qhov ntsuas tau sau meej meej, ua kom muaj kev thaj yeeb nyab xeeb rau cov neeg siv khoom.

Daim ntawv thov Scenario

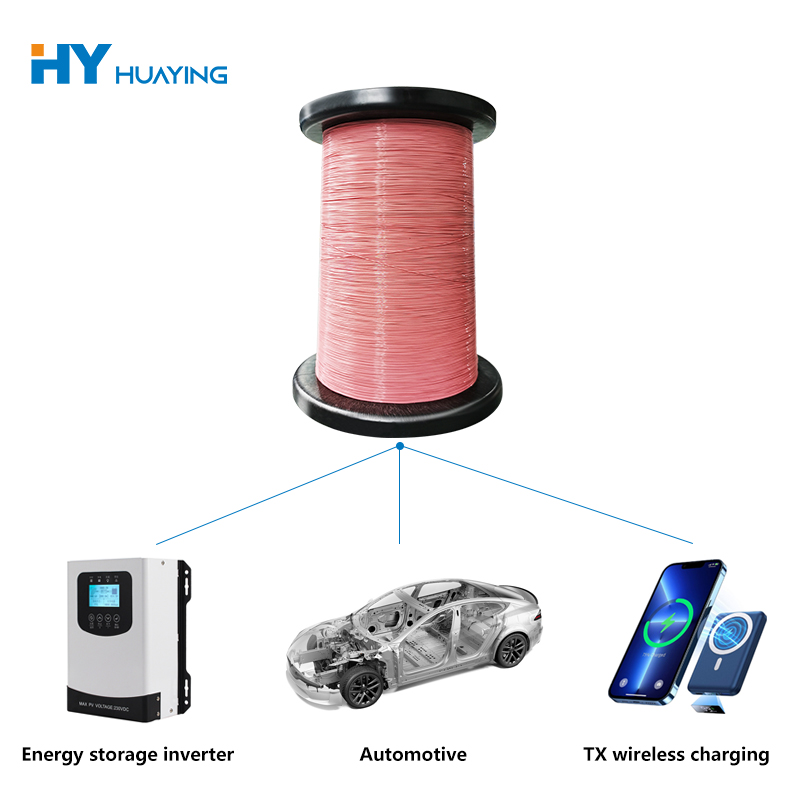

Huaying ETFE Insulated Magnet Hlau yog siv nyob rau hauv high-end daim ntaub ntawv xws li lub zog tshiab lub tsheb lub cev muaj zog windings thiab sab hauv thaiv nyob rau hauv cov khoom siv kho mob. Nws qhov kub-kub kuj ua tau raws li qhov yuav tsum tau ua ntawm kev ua haujlwm tas mus li ntawm 150 ° C hauv lub cav tsheb, thiab nws tsis muaj tshuaj lom tau dhau kev kuaj mob-qib biocompatibility. Cov kev siv tiag tiag tau pom tias tsis muaj cov cim ntawm kev tawg hauv cov txheej txheem rwb thaiv tsev txawm tias tom qab 5,000 teev ntawm kev siv nyob rau hauv ib puag ncig kev co ntawm cov khoom siv tub rog. Nrog ntau daim ntawv thov tiag tiag, koj tseem tos dab tsi? Tiv tauj peb tam sim no!

Specifications (sib series.Conventional)

Tus coj		Ua tiav sab nraud txoj kab uas hla			Tus coj tsis kam (20 degrees Celsius) (Ω/km)	Elongation %
Tus coj	Ua siab ntev	Yam tsawg kawg nkaus Tus nqi	Hom phiaj Tus nqi	Qhov siab tshaj plaws Tus nqi	Tus coj tsis kam (20 degrees Celsius) (Ω/km)	Elongation %
0.15	0.008	0.342	0.350	0.358	1037.00	≥10%
0.16	0.008	0.352	0.360	0.368	908.80	≥10%
0.17	0.008	0.362	0.370	0.378	853.50	≥10%
0.18	0.008	0.372	0.380	0.388	757.20	≥10%
0.20	0.008	0.392	0.400	0.408	577.20	≥10%
0.21	0.008	0.402	0.410	0.418	549.00	≥10%
0.22	0.008	0.412	0.420	0.428	498.40	≥10%
0.23	0.008	0.422	0.430	0.438	454.50	≥10%
0.24	0.008	0.432	0.440	0.448	416.20	≥10%
0.25	0.008	0.442	0.450	0.458	370.20	≥10%
0.26	0.008	0.452	0.460	0.468	358.40	≥10%
0.27	0.008	0.462	0.470	0.478	331.40	≥15%
0.28	0.008	0.472	0.480	0.488	294.10	≥15%
0.29	0.008	0.482	0.490	0.498	285.70	≥15%
0.30	0.008	0.492	0.500	0.508	254.00	≥15%
0.32	0.008	0.512	0.520	0.528	222.80	≥15%
0.35	0.008	0.542	0.550	0.558	185.70	≥15%
0.37	0.008	0.562	0.570	0.578	165.90	≥15%
0.40	0.008	0.592	0.600	0.608	141.70	≥15%
0.45	0.008	0.642	0.650	0.658	112.10	≥15%
0.50	0.008	0.692	0.700	0.708	89.95	≥20%
0.55	0.008	0.742	0.750	0.758	78.15	≥20%
0.60	0.008	0.792	0.800	0.808	65.26	≥20%
0.65	0.008	0.842	0.850	0.858	55.31	≥20%
0.70	0.010	0.892	0.900	0.908	47.47	≥20%
0.75	0.010	0.942	0.950	0.958	41.19	≥20%
0.80	0.010	0.992	1.000	1.008	36.08	≥25%
0.85	0.010	1.042	1.050	1.058	31.87	≥25%
0.90	0.010	1.092	1.100	1.108	28.35	≥25%
0.95	0.010	1.142	1.150	1.158	25.38	≥25%
1.00	0.010	1.192	1.200	1.208	23.33	≥25%
