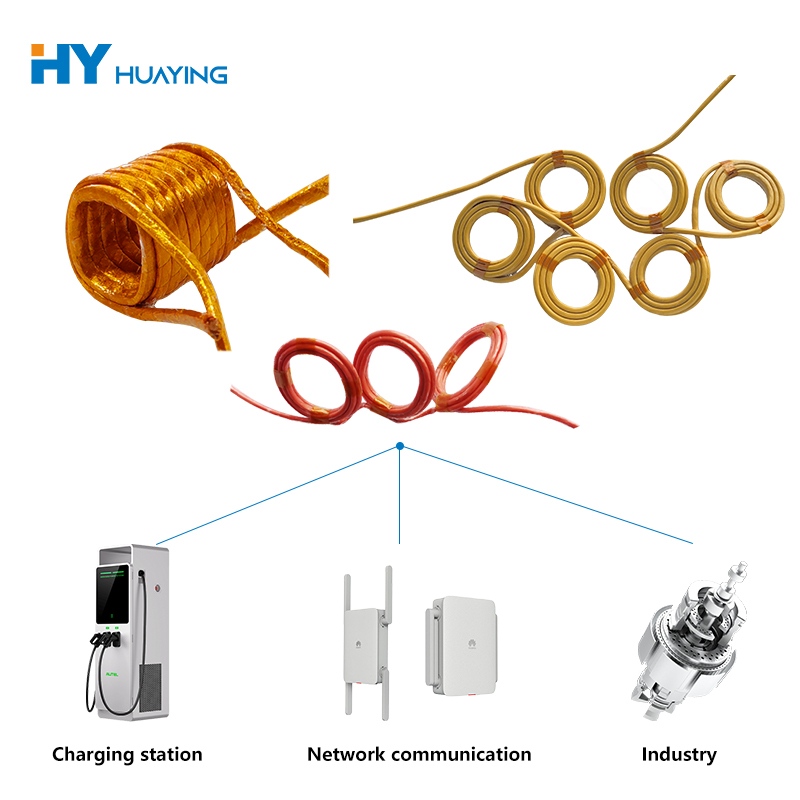

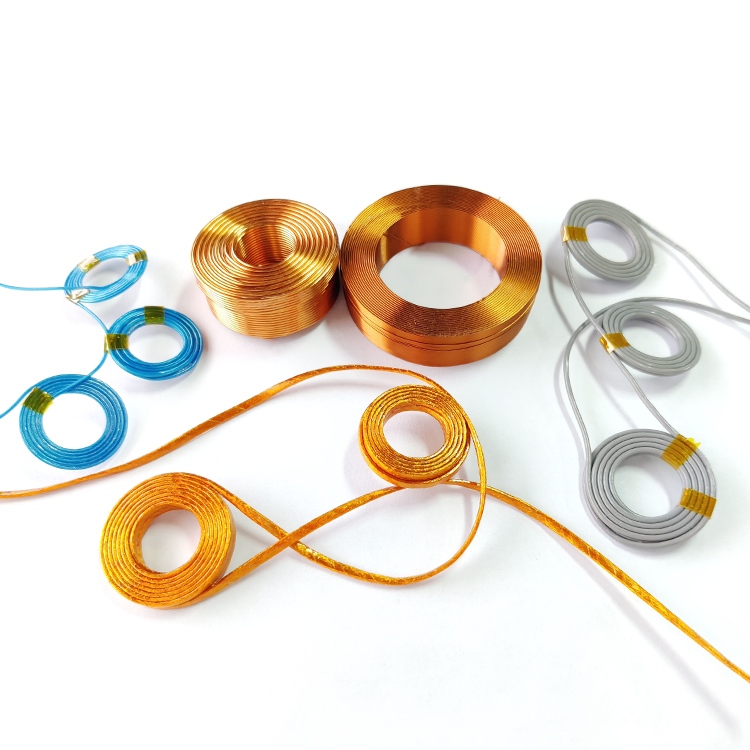

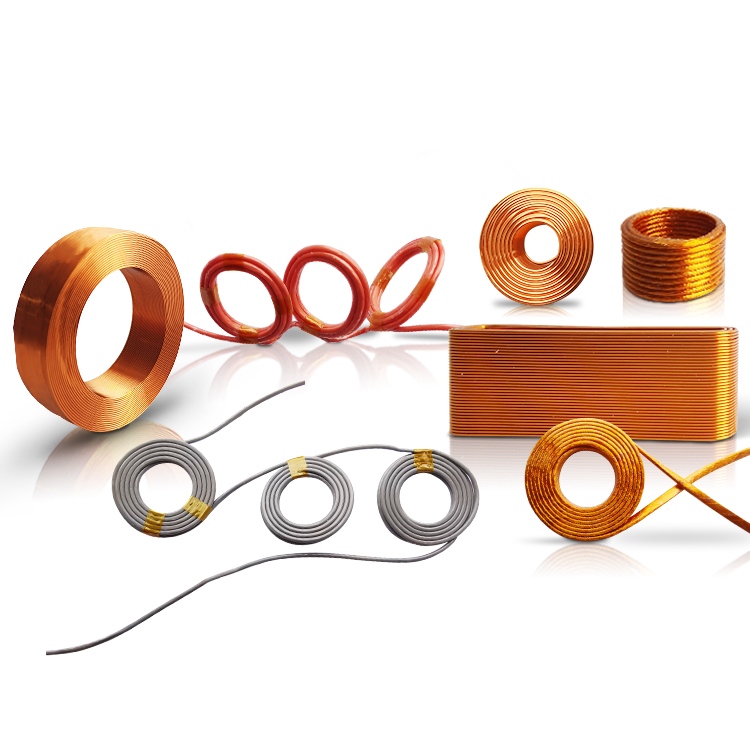

High-Temp PTFE / PFA Zaj duab xis Flat Hlau

Huaying High-Temp PTFE / PFA Zaj Duab Xis Flat Wire yog cov khoom lag luam hauv Suav teb. Tom qab nws yog Huizhou Huaying Electronic Technology Co., Ltd. Koj puas paub lub tuam txhab no? Nws yog ib yam dab tsi heev. Peb muaj kev ywj pheej ntau lawm uas npog tag nrho cov khoom siv, los ntawm kev ua cov khoom siv raw mus rau cov khoom ntim tiav. Peb kuj tau nruab nrog ntau yam khoom siv los ntawm cov khoom siv precision, ua kom muaj kev tswj xyuas meej ntawm cov xov hlau specifications. Yog li ntawd, thaum koj xaiv los ua haujlwm nrog peb, koj tab tom xaiv ib tus khub txhim khu kev qha. Cia siab rau peb thiab xaiv peb cov khoom.

Xa lus nug

Product Description

High-temperature Adhesion

Lub tiaj tus qauv ntawm Huaying High-Temp PTFE / PFA Film Flat Wire tsis tsuas yog txuag qhov chaw teeb tsa, tab sis kuj muab cov cua sov zoo heev. Saib nws cov duab tiaj tus; nws muaj kev sib cuag nrog huab cua ntau dua li cov hlau puag ncig. Nws puas tsis tsim cua sov thaum tam sim no ntws los ntawm nws? Cov cua sov no yog dissipated sai dua rau hauv cov huab cua, tsis yog nyob rau hauv cov hlau. Thaum siv cov cuab yeej siv hluav taws xob siab, cov hlau yuav tsum nqa tam sim no tseem ceeb, ua kom muaj cua sov tseem ceeb yog tias tsis ua tib zoo tswj. Yog tias qhov cua sov no tsis tuaj yeem ploj mus, cov hlau yuav dhau los, cuam tshuam tsis tsuas yog kev ua haujlwm tab sis kuj muaj peev xwm ua haujlwm tsis zoo. Lub tiaj tus hlau, txawm li cas los xij, tsis muaj qhov teeb meem no. Nws zoo heev tshav kub dissipation ua kom kub. Txawm hais tias cov khoom siv khiav ntawm cov khoom hnyav, nws tseem muaj kev ruaj ntseg ruaj khov, txo qhov kev pheej hmoo ntawm overheating thiab ua rau cov khoom tsis ua haujlwm. Nws yog qhov kev xaiv zoo tshaj plaws rau cov khoom siv hluav taws xob siab xws li cov khoom siv hluav taws xob muaj zog thiab cov motors muaj zog.

Product Manufacturing Philosophy

Los ntawm kev xaiv cov khoom siv rau kev hloov kho, peb Huaying High-Temp PTFE / PFA Film Flat Wire yog honed nrog lub tswv yim tseem ceeb ntawm "ua high-end, cov khoom zoo." Peb ua tib zoo muab cov ntaub ntawv raw zoo tshaj plaws thoob plaws ntiaj teb, thiab txhua pawg tau kuaj xyuas nruj ua ntej siv. Peb cov txheej txheem kuj tseem hloov zuj zus mus tas li, hloov kho tas li thiab txhim kho cov thev naus laus zis ntau lawm thiab qhia cov cuab yeej siv siab heev. Cias muab, lub hom phiaj yog kom ua tiav ntau dua precision. Kev tswj xyuas kom zoo yog qhov nruj dua, txawm tias qhov tsis zoo me ntsis ntawm kev hais lus meticulously, kom ntseeg tau tias txhua lub xov hlau ua tau raws li cov qauv siab tshaj plaws. Peb lub tuam txhab aspires los ua ib puas xyoo-laus lub teb chaws hom, thiab qhov kev mob siab rau kev ua tau zoo yog embedded nyob rau hauv txhua txhua kauj ruam ntawm peb cov khoom. Peb lub hom phiaj yog los muab kev txhim khu kev qha thiab siab heev rwb thaiv tsev thiab conduction kev daws teeb meem rau high-end sectors xws li lub zog tshiab, kev kho mob, thiab aerospace, enabling peb Suav insulated hlau hom kom zoo nyob rau hauv lub ntiaj teb no kev ua lag luam.

Khoom ruaj khov

Huaying High-Temp PTFE / PFA Film Flat Wire tau tsim los nrog kev xav txog kev cuam tshuam ntawm electromagnetic cuam tshuam (EMI) hauv ntau yam xwm txheej. Nws cov txheej rwb thaiv tsev tsis tsuas yog muaj qhov kub thiab txias tsis kam, tab sis kuj tseem tiv thaiv kev cuam tshuam sab nraud electromagnetic. Nyob rau hauv cov cheeb tsam nrog tuab 5G hauv paus chaw nres tsheb, kev ua haujlwm ib txhij ntawm ntau lub cuab yeej tsim kom muaj ib puag ncig electromagnetic complex. Cov kab hluav taws xob sib txawv tuaj yeem raug cuam tshuam los ntawm kev cuam tshuam, ua rau cov teeb liab tsis ruaj khov. Txawm li cas los xij, txheej txheej rwb thaiv tsev ntawm cov hlau no tsim ib qho "electromagnetic barrier," txo qhov cuam tshuam ntawm sab nraud cuam tshuam rau sab hauv tam sim no conduction. Hauv cov cuab yeej siv kho mob, qhov ntsuas qhov tseeb muaj qhov xav tau ntawm electromagnetic tsis tshua muaj, cov khoom siv no tseem muaj kev sib kis tau ruaj khov, tiv thaiv kev ntsuas cov ntaub ntawv sib txawv los ntawm kev cuam tshuam thiab ua kom muaj kev ua haujlwm raug nyob rau hauv ib puag ncig electromagnetic complex.

tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)	tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)
0.15	0.400	1037.00	0.35	0.600	185.70
0.16	0.410	908.80	0.37	0.620	165.90
0.17	0.420	853.50	0.40	0.650	141.70
0.18	0.430	757.20	0.45	0.700	112.10
0.20	0.450	577.20	0.50	0.750	89.95
0.21	0.46	549.00	0.55	0.800	78.15
0.22	0.470	498.40	0.60	0.850	65.26
0.23	0.480	454.50	0.65	0.900	55.31
0.24	0.490	416.20	0.70	0.950	47.47
0.25	0.500	370.20	0.75	1.000	41.49
0.26	0.510	358.40	0.80	1.050	36.08
0.27	0.520	331.40	0.85	1.100	31.87
0.28	0.530	294.10	0.90	1.150	28.35
0.29	0.540	285.70	0.95	1.200	25.38
0.30	0.550	254.00	1.00	1.250	23.33
0.32	0.570	222.80
