High-Temp Zaj duab xis-Insulated Flat Hlau

Huaying High-Temp Film-Insulated Flat Wire yog ib yam khoom ntawm Huizhou Huaying Electronic Technology Co., Ltd. Raws li National High-Tech Enterprise thiab lub xeev "Specialized, Advanced, thiab Innovative Enterprise," qhov khoom plig no tsis yooj yim ua tiav los ntawm cov tuam txhab zoo tib yam, yog li tsis txhob underestimate nws. Huaying tsis tsuas yog boasts ib tug systematic ntau lawm system tab sis kuj boasts muaj zog core muaj peev xwm, kev txhawb los ntawm ntau tshaj 10 technical patents, ib tug mob siab rau R & D pab neeg ntawm ntau tshaj 20 tus neeg, thiab ib tug neeg ua hauj lwm tshaj 100. Los ntawm raw khoom xaiv mus rau tiav cov khoom xeem, lub tuam txhab ua raws li cov qauv siab thoob plaws hauv tag nrho cov txheej txheem ntau lawm, muab lub hauv paus ruaj khov ntawm kev tsim khoom thiab ua kom muaj kev lag luam zoo.

Xa lus nug

Product Description

Khoom Precision Manufacturing

Los ntawm cov khoom siv raw mus rau cov khoom tiav, Huaying High-Temp Film-Insulated Flat Wire undergoes yim txheej txheem: winding, annealing, txheej, ci, txias, rov txheej nrog nws tus kheej-nplaum cov ntaub ntawv, theem nrab cua txias, thiab winding. Txhua kauj ruam yog tswj kom zoo, zoo li kev ua kom zoo "kev tsim khoom." Thaum lub sij hawm winding txheej txheem, cov cav tov precisely tswj cov hlau layout los xyuas kom meej ib tug tsis tu ncua cov duab. Cov txheej txheem annealing tshem tawm cov kev ntxhov siab hauv cov hlau los ntawm kev tswj xyuas qhov kub thiab txias, txhim kho nws lub cev. Thaum kawg, thaum lub sij hawm tseem ceeb ntawm tus kheej-nplaum cov ntaub ntawv thov txheej txheem, ib tug tshwj xeeb precision-proportioning txheej txheem xyuas kom meej ib yam ntawm cov hlau nto, nrog tsawg tsawg thickness kam rau ua. Qhov no ua kom zoo ib yam thiab ruaj ntseg adhesion thaum siv tom ntej, tshem tawm cov teeb meem tshwm sim los ntawm cov txheej txheem tsis xws luag, thiab ua kom cov khoom muaj kev ntseeg siab nyob rau hauv ntau yam kev ua haujlwm nyuaj.

Kub-kub Resistance

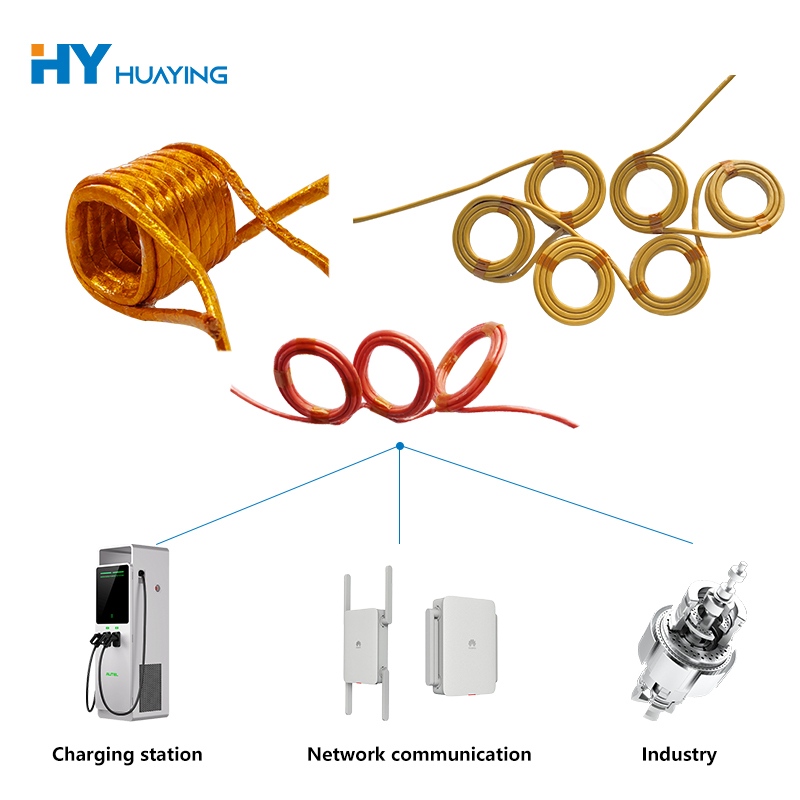

Qhov no Huaying High-Temp Film-Insulated Flat Wire yog tsim tshwj xeeb rau qhov chaw kub kub. Nws cov rwb thaiv tsev ua raws li "cov khoom tiv thaiv cua sov," tiv taus qhov kub siab tshaj 220 ° C. Piv txwv li, lub cav chav tsev ntawm lub tsheb tshiab lub zog muaj kev kub ntxhov ceev ceev. Cov kab hluav taws xob hluav taws xob zoo yuav zoo li muag thiab tsis ua haujlwm ntawm qhov kub thiab txias, tab sis cov rwb thaiv tsev ntawm cov xaim no tseem nyob ruaj khov, zoo cais tawm tam sim no thiab tshem tawm cov luv luv Circuit Court. Txawm tias nyob rau hauv huab cua kub ntawm cov khoom siv aerospace, nws ua tau zoo, kom ntseeg tau tias kev ua haujlwm zoo ntawm cov khoom siv hluav taws xob. Txawm hais tias raug qhov kub thiab txias tsis tu ncua los yog qhov kub thiab txias, nws tiv thaiv kev rwb thaiv tsev tsis ua haujlwm thiab ua kom muaj kev nyab xeeb ntawm cov khoom siv.

Ntau yam Specifications

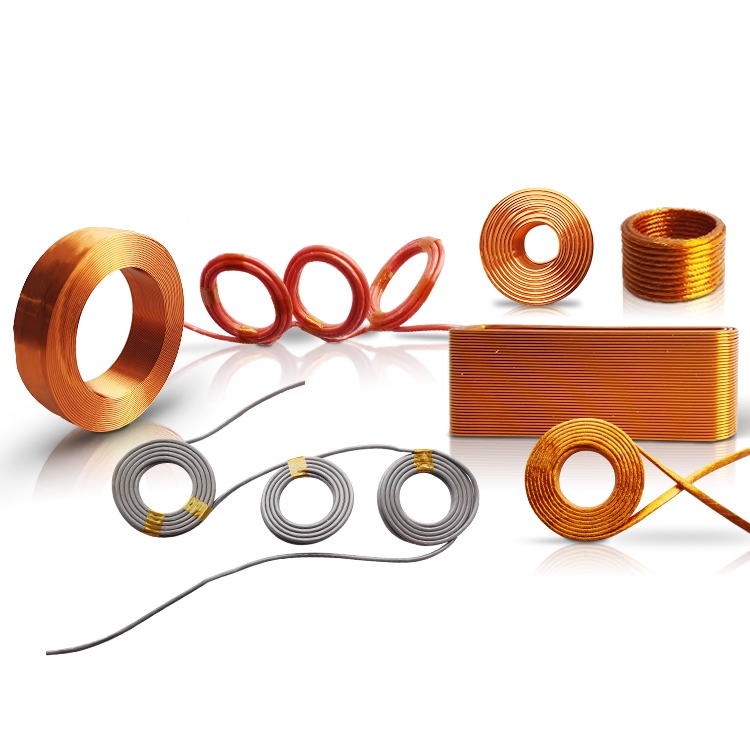

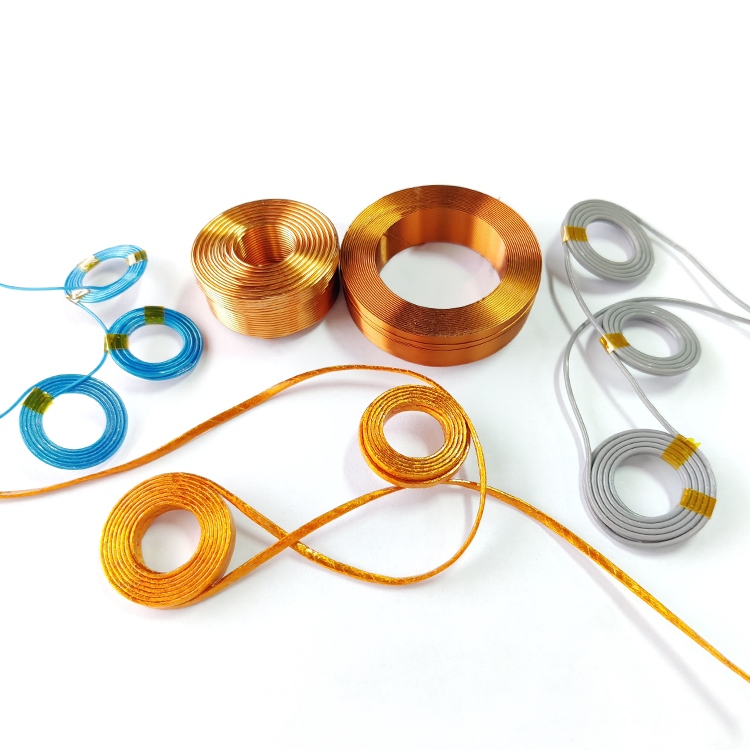

Qhov no Huaying High-Temp Film-Insulated Flat Wire muaj nyob rau hauv ntau yam kev qhia tshwj xeeb, los ntawm 0.012mm txog 0.50mm. Zoo li ntau yam cuab yeej, nws tuaj yeem ua tau raws li qhov xav tau ntawm txhua yam khoom siv, tsis hais qhov xav tau ntawm cov hlau thickness. Tsis tas li ntawd, nws cov qauv tiaj tus tshwj xeeb tso cai rau kev sib zog ua kom nruj dua li cov kab ib txwm nyob ib puag ncig, tso cai rau nws kom haum ua ke zoo li cov duab dhos ua si, txuag qhov chaw teeb tsa tseem ceeb. Cov cuab yeej siv kho mob, piv txwv li, muaj cov qauv tsim thiab cov qauv hauv qhov tseeb uas tso cov kev xav tau tshwj xeeb ntawm qhov chaw. Cov hlau tiaj tus no tso cai rau kev hloov pauv hloov pauv yam tsis siv qhov chaw ntau dhau. Ib yam li ntawd, cov ntsiab lus tseem ceeb ntawm 5G hauv paus chaw nres tsheb, uas muaj cov txheej txheem kev sib txuas, tuaj yeem ua kom nruj ua ke los ua kom zoo dua qhov chaw siv, ua kom tau raws li cov kev xav tau ntawm kev teeb tsa yam tsis muaj kev cuam tshuam tag nrho.

tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)	tus thawj coj	Ua tiav sab nraud txoj kab uas hla lub hom phiaj tus nqi	Tus neeg xyuas pib tsis kam (20 ° C) (Q2 / KM)
0.15	0.400	1037.00	0.35	0.600	185.70
0.16	0.410	908.80	0.37	0.620	165.90
0.17	0.420	853.50	0.40	0.650	141.70
0.18	0.430	757.20	0.45	0.700	112.10
0.20	0.450	577.20	0.50	0.750	89.95
0.21	0.46	549.00	0.55	0.800	78.15
0.22	0.470	498.40	0.60	0.850	65.26
0.23	0.480	454.50	0.65	0.900	55.31
0.24	0.490	416.20	0.70	0.950	47.47
0.25	0.500	370.20	0.75	1.000	41.49
0.26	0.510	358.40	0.80	1.050	36.08
0.27	0.520	331.40	0.85	1.100	31.87
0.28	0.530	294.10	0.90	1.150	28.35
0.29	0.540	285.70	0.95	1.200	25.38
0.30	0.550	254.00	1.00	1.250	23.33
0.32	0.570	222.80
